737-072-520-206

Active

EDAC Inc.

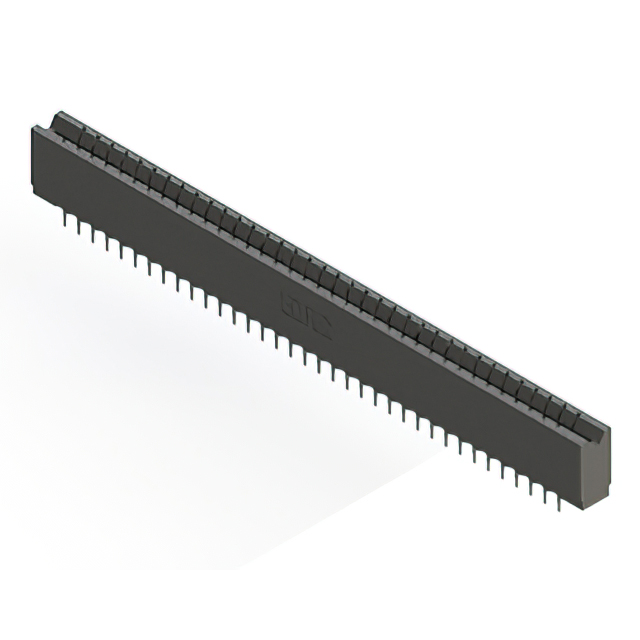

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnhanced Product Overview EN Datasheet

737-072-520-206

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsEnhanced Product Overview EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	737-072-520-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	72
Number of Positions/Bay/Row [custom]	36
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

737-072 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Number of Positions/Bay/Row [custom]	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Rows	Contact Finish	Mounting Type	Contact Material	Termination Rows	Color	Material - Insulation	Gender
EDAC Inc. 737-072-560-201	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	36	Non Specified - Dual Edge	72	0.76 Ám	30 Áin	Cantilever Make Before Break	2	Gold	Through Hole	Copper Alloy	2	Black	Polyester Thermoplastic	Female
EDAC Inc. 737-072-541-201	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit Wire Wrap	36	Non Specified - Dual Edge	72	0.76 Ám	30 Áin	Cantilever	2	Gold	Through Hole	Copper Alloy	2	Black	Polyester Thermoplastic	Female
EDAC Inc. 737-072-545-206	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit Wire Wrap	36	Non Specified - Dual Edge	72	0.76 Ám	30 Áin	Cantilever	2	Gold	Through Hole	Copper Alloy	2	Black	Polyester Thermoplastic	Female
EDAC Inc. 737-072-522-201	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	36	Non Specified - Dual Edge	72	0.76 Ám	30 Áin	Cantilever	2	Gold	Through Hole	Copper Alloy	2	Black	Polyester Thermoplastic	Female
EDAC Inc. 737-072-520-206	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	36	Non Specified - Dual Edge	72	0.76 Ám	30 Áin	Cantilever	2	Gold	Through Hole	Copper Alloy	2	Black	Polyester Thermoplastic	Female
EDAC Inc. 737-072-545-201	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit Wire Wrap	36	Non Specified - Dual Edge	72	0.76 Ám	30 Áin	Cantilever	2	Gold	Through Hole	Copper Alloy	2	Black	Polyester Thermoplastic	Female
EDAC Inc. 737-072-540-201	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit Wire Wrap	36	Non Specified - Dual Edge	72	0.76 Ám	30 Áin	Cantilever	2	Gold	Through Hole	Copper Alloy	2	Black	Polyester Thermoplastic	Female
EDAC Inc. 737-072-522-206	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	36	Non Specified - Dual Edge	72	0.76 Ám	30 Áin	Cantilever	2	Gold	Through Hole	Copper Alloy	2	Black	Polyester Thermoplastic	Female
EDAC Inc. 737-072-525-201	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	36	Non Specified - Dual Edge	72	0.76 Ám	30 Áin	Cantilever	2	Gold	Through Hole	Copper Alloy	2	Black	Polyester Thermoplastic	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 10.97
Newark	Each	25	$ 17.27
		50	$ 16.71
		100	$ 15.60
		250	$ 15.04
		500	$ 14.21

Description

General part information

737-072 Series

72 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
