4768-K-60

Active

Pomona Electronics

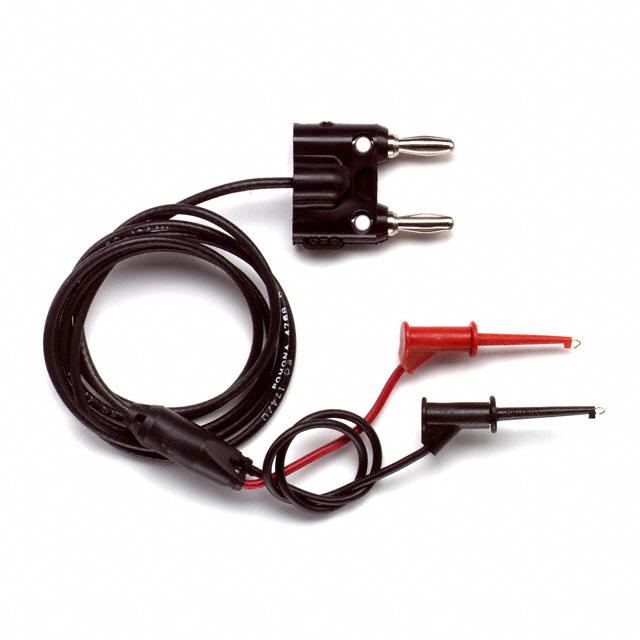

TEST LEAD BANANA TO GRABBER 60"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANANA TO GRABBER 60"

Technical Specifications

Parameters and characteristics for this part

Specification	4768-K-60

1st Connector	Stackable, Banana Plug, Double
2nd Connector	Micro Hook (2)
Cable Length	1524 mm
Cable Length	5 ft
Configuration	Banana to Grabber, Hook
Contents	Black and Red Leads, 1 Cable, Black
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	1 kV
Voltage - Rated	1000 V
Wire Gauge	20 AWG
Wire Gauge	RG-174/U

Part	Material - Insulation	Type	2nd Connector	Cable Length	Cable Length	Voltage - Rated	Voltage - Rated	Contents	1st Connector	Stacking Method	Wire Gauge	Wire Gauge	Configuration
Pomona Electronics 4768-K-24	Poly-Vinyl Chloride (PVC)	Patch Cord	Micro Hook (2)	24 "	609.6 mm	1 kV	1000 V	1 Cable Black Black and Red Leads	Banana Plug Double Stackable	Front and Vertical Multi-Stacking	20 AWG	RG-174/U	Banana to Grabber Hook
Pomona Electronics 4768-K-48	Poly-Vinyl Chloride (PVC)	Patch Cord	Micro Hook (2)	48 in	1219.2 mm	1 kV	1000 V	1 Cable Black Black and Red Leads	Banana Plug Double Stackable	Front and Vertical Multi-Stacking	20 AWG	RG-174/U	Banana to Grabber Hook
Pomona Electronics 4768-K-60	Poly-Vinyl Chloride (PVC)	Patch Cord	Micro Hook (2)	5 ft	1524 mm	1 kV	1000 V	1 Cable Black Black and Red Leads	Banana Plug Double Stackable	Front and Vertical Multi-Stacking	20 AWG	RG-174/U	Banana to Grabber Hook
Pomona Electronics 4768-K-36	Poly-Vinyl Chloride (PVC)	Patch Cord	Micro Hook (2)	36 in	914.4 mm	1 kV	1000 V	1 Cable Black Black and Red Leads	Banana Plug Double Stackable	Front and Vertical Multi-Stacking	20 AWG	RG-174/U	Banana to Grabber Hook

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60.0" (1524.00mm) Banana Plug, Double, Stackable To Micro Hook (2) Patch Cord 1000VDC (1kV)
