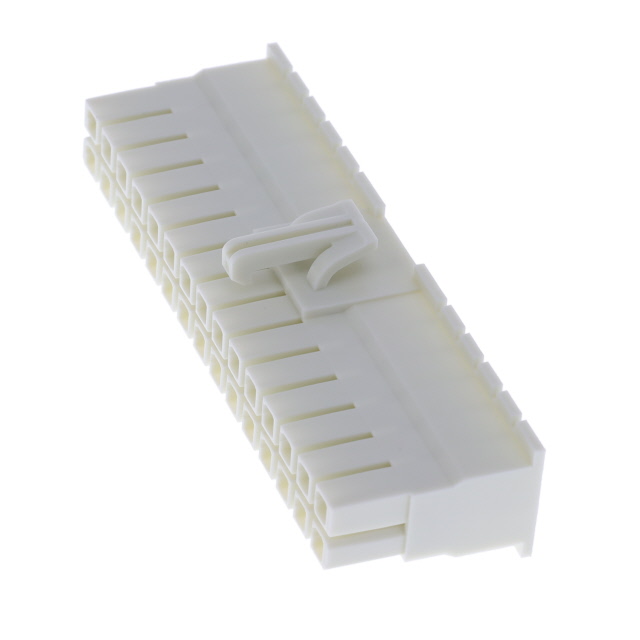

IPBD-15-D
ActiveSamtec Inc.
CONN RCPT HSG 30POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
IPBD-15-D
ActiveSamtec Inc.
CONN RCPT HSG 30POS 4.20MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPBD-15-D |
|---|---|
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 4.2 mm |
| Pitch [x] | 0.165 in |
| Row Spacing | 4.2 mm |
| Row Spacing | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.56 | |
| 10 | $ 2.17 | |||
| 25 | $ 2.04 | |||
| 50 | $ 1.94 | |||
| 100 | $ 1.85 | |||
| 250 | $ 1.73 | |||
| 500 | $ 1.65 | |||
| 1000 | $ 1.57 | |||
| 2500 | $ 1.51 | |||
Description
General part information
IPBD-15 Series
30 Rectangular Connectors - Housings Receptacle 0.165" (4.20mm)
