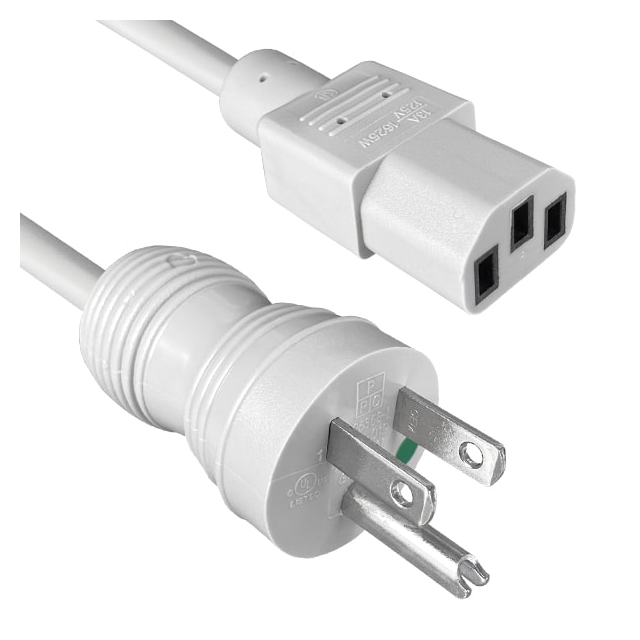

Specification	233056-06

1st Connector	NEMA 5-15P
2nd Connector	IEC 320-C13
Approval Agency Marking	CSA, UL
Approved Countries	United States, Canada
Color	Gray
Cord Type	SJT
Current Rating	13 A
Features	Hospital Grade
Length	10 ft
Number of Conductors	3
Operating Temperature	60 °C
Shielding	Unshielded
Style	Female Sockets (Slots), Male Pins (Blades)
Voltage Rating	125 V
Wire Gauge	16 AWG

233056 Series

Part	Number of Conductors	Cord Type	Wire Gauge	Current Rating	Features	Approval Agency Marking	Operating Temperature	Shielding	Length	Style	2nd Connector	1st Connector	Color	Approved Countries	Voltage Rating
Qualtek 233056-06	3	SJT	16 AWG	13 A	Hospital Grade	CSA UL	60 °C	Unshielded	10 ft	Female Sockets (Slots) Male Pins (Blades)	IEC 320-C13	NEMA 5-15P	Gray	Canada United States	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
