SSI-LXR3612SRD

Active

Lumex Opto/Components Inc.

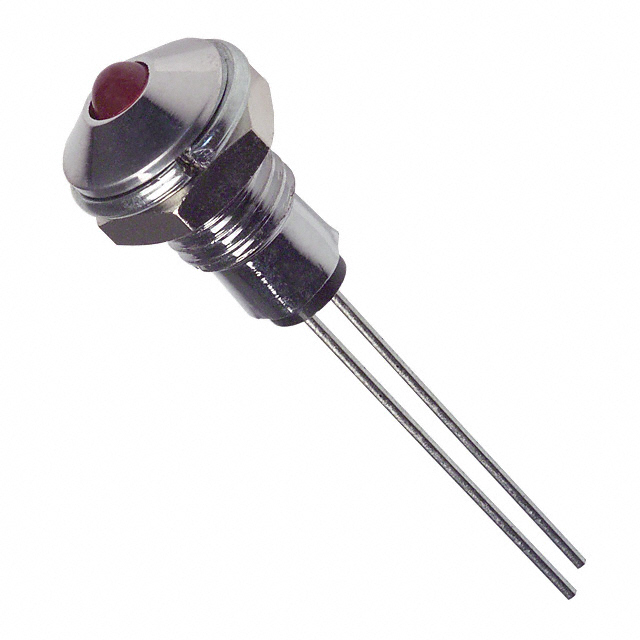

LED 3MM SUPER RED DIFF PANEL MT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM SUPER RED DIFF PANEL MT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Diffused 60° 1.8V 30mA

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SSI-LXR3612SRD	SSI-LXR3612 Series

	-	-
Current	30 mA	12 - 30 mA
Lamp Color	Red	Orange, Green, Red, Blue, Yellow
Lens Color	Red	Orange, Green, Red, Blue, Yellow
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	65 mcd	15 - 100 mcd
Panel Cutout Dimensions	6.1 mm	6.1 mm
Panel Cutout Dimensions	0.24 in	0.24 in
Panel Cutout Shape	Round	Round
Ratings	-	DC
Termination Style	-	Wire Leads - 6.000" (152.40mm), Wire Leads - 12" (304.80mm), Wire Leads - 18" (457.20mm)
Type	LED	LED
Viewing Angle	60 °	60 °
Voltage	1.8 V	1.8 - 5 V
Wavelength - Peak	660 nm	565 - 660 nm

LED PANEL INDICATOR ORANGE 2.1V

Part	Millicandela Rating	Lens Color	Viewing Angle	Lamp Color	Type	Panel Cutout Shape	Lens Transparency	Lens Style	Voltage	Wavelength - Peak	Lens Size	Lens Size	Current	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions
Lumex Opto/Components Inc. SSI-LXR3612SOD-150	100 mcd	Orange	60 °	Orange	LED	Round	Diffused	Round with Domed Top	2.1 V	610 nm	3 mm	T-1
Lumex Opto/Components Inc. SSI-LXR3612YD-150
Lumex Opto/Components Inc. SSI-LXR3612GD-150	30 mcd	Green	60 °	Green	LED	Round	Diffused	Round with Domed Top	2.2 V	565 nm	3 mm	T-1	25 mA	Wire Leads - 6.000" (152.40mm)
Lumex Opto/Components Inc. SSI-LXR3612SRD	65 mcd	Red	60 °	Red	LED	Round	Diffused	Round with Domed Top	1.8 V	660 nm	3 mm	T-1	30 mA		6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612ID-300	30 mcd	Red	60 °	Red	LED	Round	Diffused	Round with Domed Top	2 V	635 nm	3 mm	T-1	30 mA	Wire Leads - 12" (304.80mm)	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612USBD150	60 mcd	Blue	60 °	Blue	LED	Round	Diffused	Round with Domed Top	3.5 V		3 mm	T-1
Lumex Opto/Components Inc. SSI-LXR3612YD	30 mcd	Yellow	60 °	Yellow	LED	Round	Diffused	Round with Domed Top	2.1 V	585 nm	3 mm	T-1	30 mA		6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612SYD-150	100 mcd	Yellow	60 °	Yellow	LED	Round	Diffused	Round with Domed Top	2.1 V	590 nm	3 mm	T-1
Lumex Opto/Components Inc. SSI-LXR3612GD-450	30 mcd	Green	60 °	Green	LED	Round	Diffused	Round with Domed Top	2.2 V	565 nm	3 mm	T-1		Wire Leads - 18" (457.20mm)
Lumex Opto/Components Inc. SSI-LXR3612GD	30 mcd	Green	60 °	Green	LED	Round	Diffused	Round with Domed Top	2.2 V	565 nm	3 mm	T-1	25 mA		6.1 mm	0.24 in
