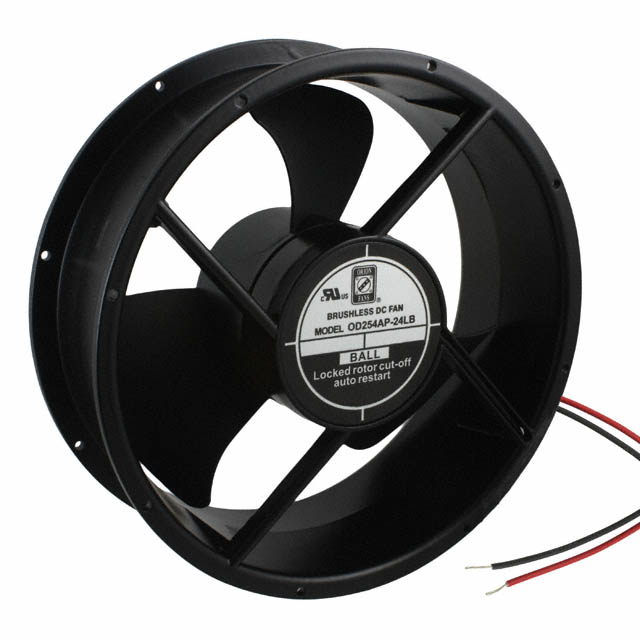

DC AXIAL FAN, 24 V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 550 CFM

Deep-Dive with AI

Search across all available documentation for this part.

OD254AP-24LB

Active

Orion Fans

DC AXIAL FAN, 24 V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 550 CFM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD254AP-24LB

Air Flow	15.4 mł/min
Air Flow	550 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.52 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	40000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Aluminum
Noise	39 dB(A)
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	13 W
RPM	1500 RPM
Size / Dimension	Round
Size / Dimension [diameter]	10 in
Static Pressure	92.2 Pa
Static Pressure	0.37 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27 VDC
Voltage Range [Min]	16 VDC
Width [y]	89 mm

OD254AP Series

Part	Fan Type	Bearing Type	Features	Power (Watts)	Material - Blade	Width [y]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Frame	Lifetime @ Temp.	Voltage - Rated	Noise	Static Pressure	Static Pressure	Termination	Air Flow	Air Flow	Size / Dimension [diameter]	Size / Dimension	Voltage Range [Min]	Voltage Range [Max]	RPM	Current Rating (Amps)	Voltage - Rated [custom]
Orion Fans OD254AP-24MB	Tubeaxial	Ball	Auto Restart	24 W	Polybutylene Terephthalate (PBT)	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs	24 VDC	47 dB	144.5 Pa	0.58 in H2O	2 Wire Leads	690 CFM	19.32 mł/min	10 in	Round	16 VDC	27 VDC	2000 RPM
Orion Fans OD254AP-24MTB	Tubeaxial	Ball	Auto Restart	24 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs	24 VDC	47 dB	144.5 Pa	0.58 in H2O	2 Terminals	690 CFM	19.32 mł/min	10 in	Round	16 VDC	27 VDC	2000 RPM	970 mA
Orion Fans OD254AP-24HB	Tubeaxial	Ball	Auto Restart	64 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs	24 VDC	64 dB(A)	206.7 Pa	0.83 in H2O	2 Wire Leads	850 CFM	23.8 mł/min	10 in	Round	16 VDC	27 VDC	2500 RPM	2.65 A
Orion Fans OD254AP-12HB	Tubeaxial	Ball	Auto Restart	65 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs	12 VDC	60 dB(A)	194.3 Pa	0.78 in H2O	2 Wire Leads	830 CFM	23.24 m³/min	10 in	Round	9 V	13 VDC	2400 RPM	5.4 A
Orion Fans OD254AP-24HTB	Tubeaxial	Ball	Auto Restart	64 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs	24 VDC	64 dB(A)	206.7 Pa	0.83 in H2O	2 Terminals	850 CFM	23.8 mł/min	10 in	Round	16 VDC	27 VDC	2500 RPM	2.65 A
Orion Fans OD254AP-24LB	Tubeaxial	Ball	Auto Restart	13 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs	24 VDC	39 dB(A)	92.2 Pa	0.37 in H2O	2 Wire Leads	550 CFM	15.4 mł/min	10 in	Round	16 VDC	27 VDC	1500 RPM	0.52 A
Orion Fans OD254AP-12HB10A	Tubeaxial	Ball	Auto Restart PWM Control Speed Sensor (Tach)	65 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs	12 VDC	60 dB(A)	194.3 Pa	0.78 in H2O	4 Wire Leads	830 CFM	23.24 m³/min	10 in	Round	9 V	13 VDC	2400 RPM	5.4 A
Orion Fans OD254AP-48HB10A	Tubeaxial	Ball	Auto Restart PWM Control Speed Sensor (Tach)	62 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs		64 dB(A)	206.7 Pa	0.83 in H2O	4 Wire Leads	850 CFM	23.8 mł/min	10 in	Round	24 VDC	53 VDC	2500 RPM	1.3 A	48 VDC
Orion Fans OD254AP-12MB	Tubeaxial	Ball	Auto Restart	50 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs	12 VDC	47 dB	144.5 Pa	0.58 in H2O	2 Wire Leads	690 CFM	19.32 mł/min	10 in	Round	9 V	13 VDC	2000 RPM	4.2 A
Orion Fans OD254AP-48HB	Tubeaxial	Ball	Auto Restart	62 W	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	89 mm	cURus TUV	-20 C	-20 °C	75 ░C	75 °C	Aluminum	40000 Hrs		64 dB(A)	206.7 Pa	0.83 in H2O	2 Wire Leads	850 CFM	23.8 mł/min	10 in	Round	24 VDC	53 VDC	2500 RPM	1.3 A	48 VDC
