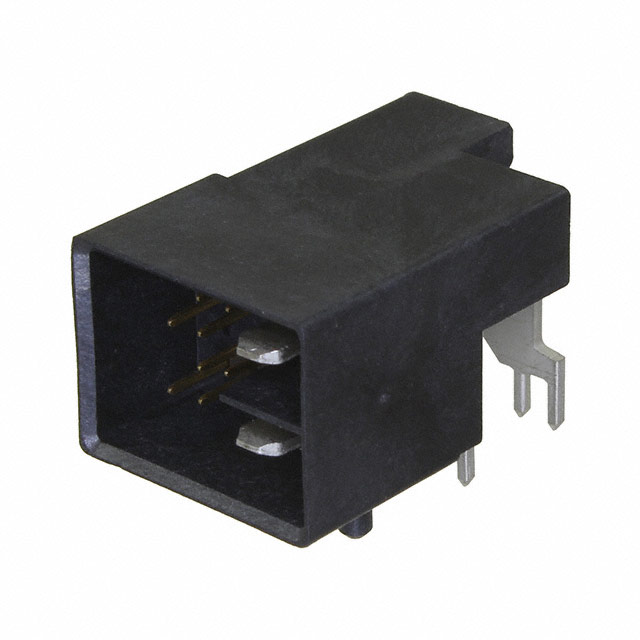

10140949-101LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 14POS

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER R/A 14POS

Technical Specifications

Parameters and characteristics for this part

Specification	10140949-101LF

Connector Type	Plug
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Copper Alloy
Contact Type	Male Blade
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	IP67
Insulation Height	0.492 in
Insulation Height	12.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions	Style	Insulation Height	Insulation Height	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Ingress Protection	Mounting Type	Shrouding	Number of Positions Loaded	Contact Finish - Mating	Contact Finish - Post	Termination	Features	Contact Material	Connector Type	Fastening Type
Amphenol ICC (FCI) 10140949-101LF	85 °C	-55 °C	Male Blade	14	Board to Cable/Wire	0.492 in	12.5 mm	UL94 V-0	0.106 in	2.69 mm	IP67	Through Hole Right Angle	Shrouded - 4 Wall	10	Gold	Tin	Solder	Board Guide	Copper Alloy	Plug	Latch Holder
Amphenol ICC (FCI) 10140949-102LF	85 °C	-55 °C	Male Blade	14	Board to Cable/Wire	0.492 in	12.5 mm	UL94 V-0	0.106 in	2.69 mm	IP67	Through Hole Right Angle	Shrouded - 4 Wall	12	Gold	Tin	Solder	Board Guide	Copper Alloy	Plug	Latch Holder
