6840-4500PL

Active

3M (TC)

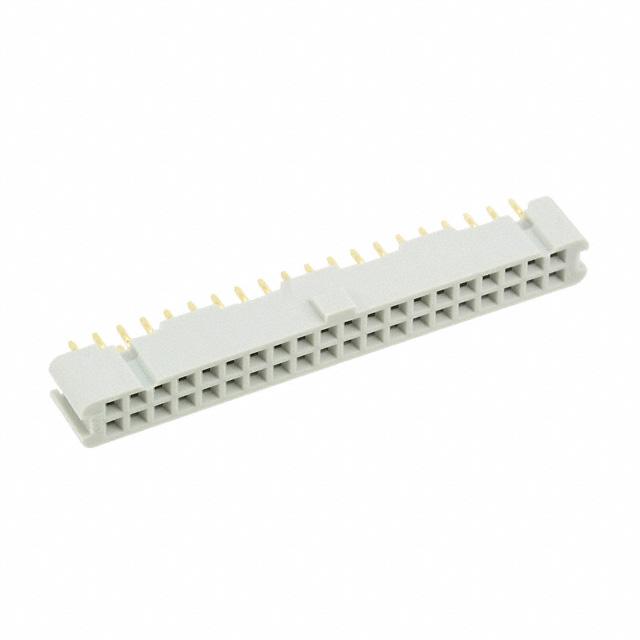

JE150344164 6840-4500PL =40/2R/BM SKT/.100/STR/NFLG/.112/10MIN

Search across all available documentation for this part.

Active

3M (TC)

JE150344164 6840-4500PL =40/2R/BM SKT/.100/STR/NFLG/.112/10MIN

Technical Specifications

Parameters and characteristics for this part

Specification	6840-4500PL

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	Flash
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key
Insulation Color	Gray
Insulation Height	0.283 "
Insulation Height	7.19 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Kinked Pin, Solder
Voltage Rating	1000 VDC

Part	Insulation Height	Insulation Height	Termination	Style	Contact Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Mounting Type	Contact Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Number of Positions	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Insulation Color	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
3M (TC) 6840-4500JL	0.283 "	7.19 mm	Solder	Board to Board Cable	Copper Alloy	Polarizing Key	105 ░C	-55 °C	UL94 V-0	All	Gold	Gold	Through Hole	Female Socket	Push-Pull	0.11 in	2.79 mm	40	Receptacle	2.54 mm	0.1 in	1000 VDC	0.1 in	2.54 mm	Flash	Square	Polybutylene Terephthalate (PBT) Glass Filled	Gray	2	12 µin	0.3 µm
3M (TC) 6840-4500PL	0.283 "	7.19 mm	Kinked Pin Solder	Board to Board Cable	Copper Alloy	Polarizing Key	105 ░C	-55 °C	UL94 V-0	All	Gold	Gold	Through Hole	Female Socket	Push-Pull	0.11 in	2.79 mm	40	Receptacle	2.54 mm	0.1 in	1000 VDC	0.1 in	2.54 mm	Flash	Square	Polybutylene Terephthalate (PBT) Glass Filled	Gray	2	12 µin	0.3 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
