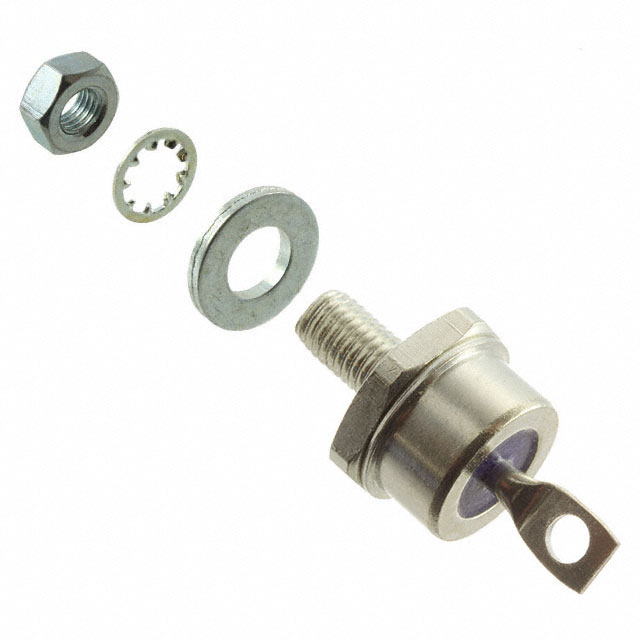

1N1184AR

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 100V 40A DO5

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP REV 100V 40A DO5

Technical Specifications

Parameters and characteristics for this part

Specification	1N1184AR

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-203AB, DO-5, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-5
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

DIODE GEN PURP REV 100V 40A DO5

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Average Rectified (Io)	Supplier Device Package	Package / Case	Mounting Type
GeneSiC Semiconductor 1N1184AR	200 C	-65 C	10 µA	Standard Recovery >500ns	200 mA	100 V	1.1 V	Reverse Polarity, Standard	40 A	DO-5	DO-203AB, DO-5, Stud	Chassis, Stud Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 40A Chassis, Stud Mount DO-5
