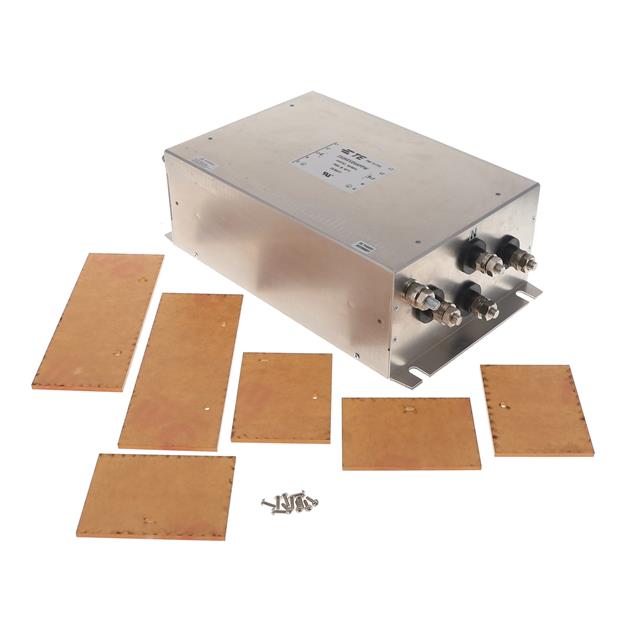

250KEVD6AFPW
ActiveTE Connectivity Raychem Cable Protection
LINE FLTR 440VAC 250A CHASS MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
250KEVD6AFPW
ActiveTE Connectivity Raychem Cable Protection
LINE FLTR 440VAC 250A CHASS MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 250KEVD6AFPW |
|---|---|
| Applications | General Purpose |
| Approval Agency | CSA, UL |
| Configuration | Two Stage |
| Current | 250 A |
| Filter Type | Three Phase (Wye) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Threaded Post (M10) |
| Voltage - Rated AC | 440 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1196.91 | |
Description
General part information
250KEVD10 Series
Three Phase (Wye) EMC/EMI Line Filter 250 A 440V 50/60Hz Two Stage Threaded Post (M10)
