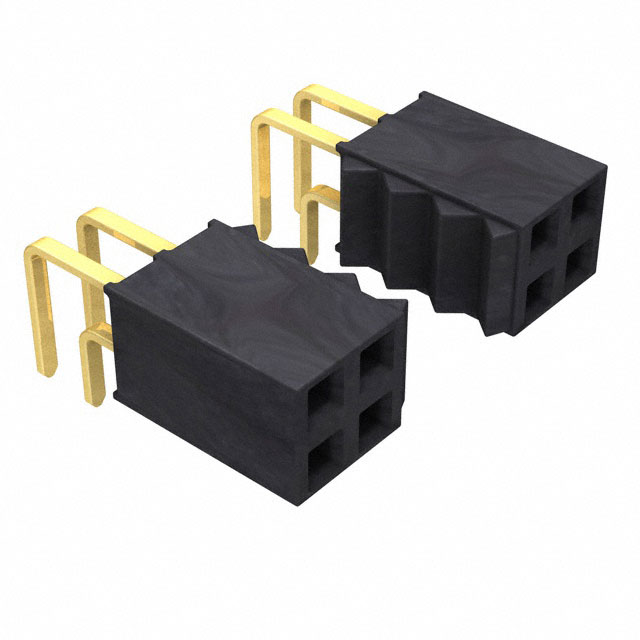

SSW-143-02-G-D-RA

Active

Samtec Inc.

CONN RCPT 86POS 0.1 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSW-143-02-G-D-RA

Active

Samtec Inc.

CONN RCPT 86POS 0.1 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSW-143-02-G-D-RA

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	86
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder

SSW-143 Series

Part	Insulation Material	Fastening Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Connector Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Mating	Style	Contact Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Termination	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. SSW-143-01-G-D	Liquid Crystal Polymer (LCP)	Push-Pull	2	2.54 mm	0.1 in	Black	Receptacle	Forked	0.51 µm	20 µin	UL94 V-0	4.7 A	Gold	0.1 in	2.54 mm	0.335 "	8.51 mm	All	86	-55 °C	125 °C	Square	Gold	Board to Board Cable	Phosphor Bronze	Through Hole	3 µin	0.076 µm	0.104 in	2.64 mm	Solder
Samtec Inc. SSW-143-02-S-D	Liquid Crystal Polymer (LCP)	Push-Pull	2	2.54 mm	0.1 in	Black	Receptacle	Forked	0.76 Ám	30 Áin	UL94 V-0	4.7 A	Tin	0.1 in	2.54 mm	0.335 "	8.51 mm	All	86	-55 °C	125 °C	Square	Gold	Board to Board Cable	Phosphor Bronze	Through Hole			0.194 in	4.93 mm	Solder
Samtec Inc. SSW-143-01-T-S	Liquid Crystal Polymer (LCP)	Push-Pull	1			Black	Receptacle	Forked			UL94 V-0	4.7 A	Tin	0.1 in	2.54 mm	0.335 "	8.51 mm	All	43	-55 °C	105 ░C	Square		Board to Board Cable	Phosphor Bronze	Through Hole			0.104 in	2.64 mm	Solder
Samtec Inc. SSW-143-22-S-S-RA	Liquid Crystal Polymer (LCP)	Push-Pull	1			Black	Receptacle	Forked	0.76 Ám	30 Áin	UL94 V-0	4.7 A	Tin	0.1 in	2.54 mm			All	43	-55 °C	125 °C	Square	Gold	Board to Board Cable	Phosphor Bronze	Through Hole Right Angle			0.1 in	2.54 mm	Solder	0.095 in	2.41 mm
Samtec Inc. SSW-143-23-G-D	Liquid Crystal Polymer (LCP)	Push-Pull	2	2.54 mm	0.1 in	Black	Receptacle	Forked	0.51 µm	20 µin	UL94 V-0	4.7 A	Gold	0.1 in	2.54 mm	0.335 "	8.51 mm	All	86	-55 °C	125 °C	Square	Gold	Board to Board Cable	Phosphor Bronze	Through Hole	3 µin	0.076 µm	0.394 in	10 mm	Solder
Samtec Inc. SSW-143-02-S-D-RA	Liquid Crystal Polymer (LCP)	Push-Pull	2	2.54 mm	0.1 in	Black	Receptacle	Forked	0.76 Ám	30 Áin	UL94 V-0	4.7 A	Tin	0.1 in	2.54 mm	0.195 in	4.95 mm	All	86	-55 °C	125 °C	Square	Gold	Board to Board Cable	Phosphor Bronze	Through Hole Right Angle			0.1 in	2.54 mm	Solder
Samtec Inc. SSW-143-02-G-D	Liquid Crystal Polymer (LCP)	Push-Pull	2	2.54 mm	0.1 in	Black	Receptacle	Forked	0.51 µm	20 µin	UL94 V-0	4.7 A	Gold	0.1 in	2.54 mm	0.335 "	8.51 mm	All	86	-55 °C	125 °C	Square	Gold	Board to Board Cable	Phosphor Bronze	Through Hole	3 µin	0.076 µm	0.194 in	4.93 mm	Solder
Samtec Inc. SSW-143-02-G-D-RA	Liquid Crystal Polymer (LCP)	Push-Pull	2	2.54 mm	0.1 in	Black	Receptacle	Forked	0.51 µm	20 µin	UL94 V-0	4.7 A	Gold	0.1 in	2.54 mm	0.195 in	4.95 mm	All	86	-55 °C	125 °C	Square	Gold	Board to Board Cable	Phosphor Bronze	Through Hole Right Angle	3 µin	0.076 µm	0.1 in	2.54 mm	Solder
Samtec Inc. SSW-143-01-S-S	Liquid Crystal Polymer (LCP)	Push-Pull	1			Black	Receptacle	Forked	0.76 Ám	30 Áin	UL94 V-0	4.7 A	Tin	0.1 in	2.54 mm	0.335 "	8.51 mm	All	43	-55 °C	125 °C	Square	Gold	Board to Board Cable	Phosphor Bronze	Through Hole			0.104 in	2.64 mm	Solder
Samtec Inc. SSW-143-03-S-D-RA	Liquid Crystal Polymer (LCP)	Push-Pull	2	2.54 mm	0.1 in	Black	Receptacle	Forked	0.76 Ám	30 Áin	UL94 V-0	4.7 A	Tin	0.1 in	2.54 mm	0.195 in	4.95 mm	All	86	-55 °C	125 °C	Square	Gold	Board to Board Cable	Phosphor Bronze	Through Hole Right Angle					Solder			7.62 mm	0.3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.29
		10	$ 13.26
		100	$ 10.92
		500	$ 9.98
		1000	$ 9.60

Description

General part information

SSW-143 Series

86 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
