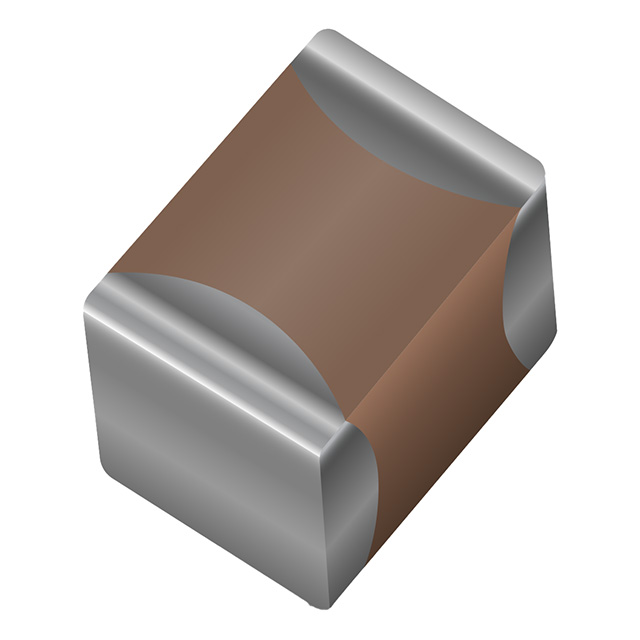

KAS15AR71H102KM
ActiveKyocera AVX
CAP CER 1000PF 50V X7R 0603
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KAS15AR71H102KM
ActiveKyocera AVX
CAP CER 1000PF 50V X7R 0603
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KAS15AR71H102KM |
|---|---|
| Applications | Boardflex Sensitive, Automotive |
| Capacitance | 0.001 µF |
| Features | Soft Termination |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.81 mm |
| Size / Dimension [y] | 0.032 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.5 mm |
| Thickness (Max) [Max] | 0.02 in |
| Tolerance | 10 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.45 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
| 2500 | $ 0.20 | |||
| 5000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.45 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
| 2500 | $ 0.20 | |||
| 5000 | $ 0.19 | |||
| Tape & Reel (TR) | 15000 | $ 0.18 | ||
| 30000 | $ 0.17 | |||
Description
General part information
FS035C Series
1000 pF ±10% 50V Ceramic Capacitor X7R 0603 (1608 Metric)
Documents
Technical documentation and resources
