NKK Switches

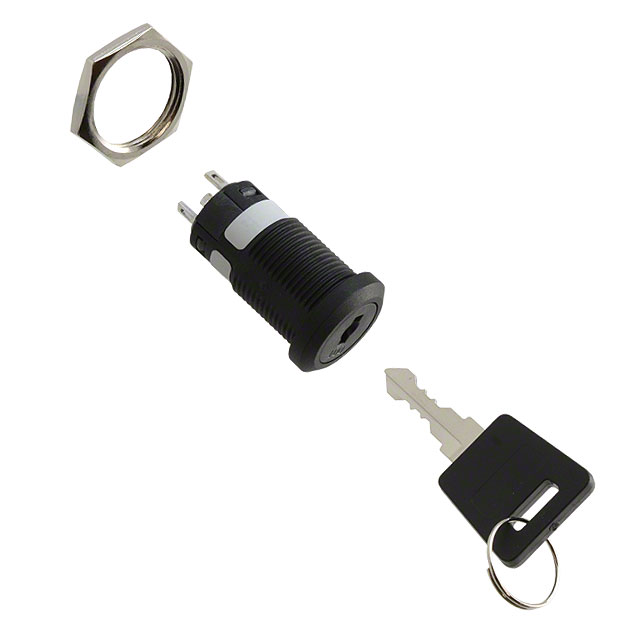

KEYLOCK SWITCH, ON-NONE-ON, SPDT, 2 POSITION, SOLDER, 3 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CKM12BFW01-001

Active

NKK Switches

KEYLOCK SWITCH, ON-NONE-ON, SPDT, 2 POSITION, SOLDER, 3 A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CKM12BFW01-001

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SPDT
Contact Finish	Silver
Contact Material	Silver (Ag)
Contact Timing	Non-Shorting
Current Rating (Amps)	3 A
Depth Behind Flange	31.2 mm
Electrical Life	10000 Cycles
Features	Epoxy Sealed Terminals
Key Removable Positions	1 only
Mechanical Life	30000 Steps
Number of Positions	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	250 V

CKM12BFW Series

Part	Contact Finish	Actuator Type	Depth Behind Flange	Termination Style	Angle of Throw	Switch Function	Electrical Life	Key Removable Positions	Circuit	Features	Contact Material	Number of Positions	Voltage Rating - AC	Contact Timing	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches CKM12BFW01-007	Silver	Flat Key	31.2 mm	Solder Lug	90 °	On-On	10000 Cycles	1 only	SPDT	Epoxy Sealed Terminals	Silver (Ag)	2	250 V	Non-Shorting	16 mm	3 A	30000 Steps	70 °C	-25 °C
NKK Switches CKM12BFW01-005	Silver	Flat Key	31.2 mm	Solder Lug	90 °	On-On	10000 Cycles	1 only	SPDT	Epoxy Sealed Terminals	Silver (Ag)	2	250 V	Non-Shorting	16 mm	3 A	30000 Steps	70 °C	-25 °C
NKK Switches CKM12BFW01-009	Silver	Flat Key	31.2 mm	Solder Lug	90 °	On-On	10000 Cycles	1 only	SPDT	Epoxy Sealed Terminals	Silver (Ag)	2	250 V	Non-Shorting	16 mm	3 A	30000 Steps	70 °C	-25 °C
NKK Switches CKM12BFW01-006	Silver	Flat Key	31.2 mm	Solder Lug	90 °	On-On	10000 Cycles	1 only	SPDT	Epoxy Sealed Terminals	Silver (Ag)	2	250 V	Non-Shorting	16 mm	3 A	30000 Steps	70 °C	-25 °C
NKK Switches CKM12BFW01-001	Silver	Flat Key	31.2 mm	Solder Lug	90 °	On-On	10000 Cycles	1 only	SPDT	Epoxy Sealed Terminals	Silver (Ag)	2	250 V	Non-Shorting	16 mm	3 A	30000 Steps	70 °C	-25 °C
NKK Switches CKM12BFW01-003	Silver	Flat Key	31.2 mm	Solder Lug	90 °	On-On	10000 Cycles	1 only	SPDT	Epoxy Sealed Terminals	Silver (Ag)	2	250 V	Non-Shorting	16 mm	3 A	30000 Steps	70 °C	-25 °C
NKK Switches CKM12BFW01-002	Silver	Flat Key	31.2 mm	Solder Lug	90 °	On-On	10000 Cycles	1 only	SPDT	Epoxy Sealed Terminals	Silver (Ag)	2	250 V	Non-Shorting	16 mm	3 A	30000 Steps	70 °C	-25 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.22
		10	$ 14.86
		25	$ 14.01
		50	$ 13.40
		100	$ 12.81
		250	$ 12.08
		500	$ 11.55
Newark	Each	1	$ 22.22
		10	$ 18.96
		25	$ 17.23

Description

General part information

CKM12BFW Series

Keylock Switch 2 Position SPDT 3A (AC) 250 VAC DC Panel Mount
