Q-2702K000M.75M

Active

Amphenol Custom Cable

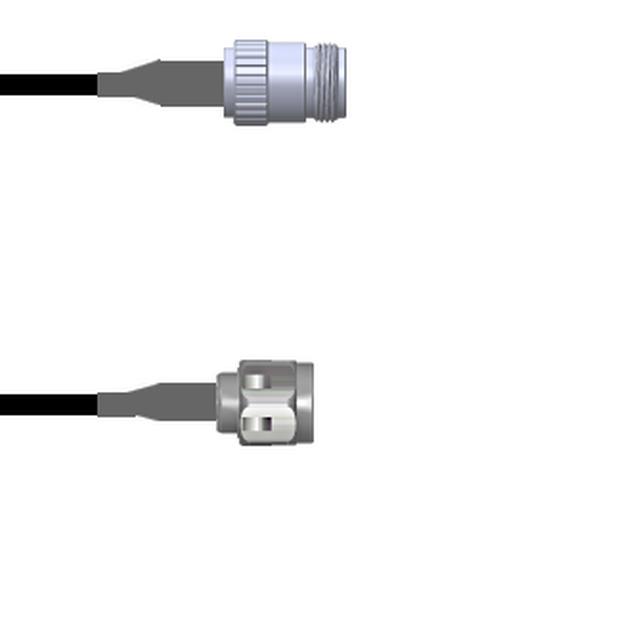

CBL ASSY NTYPE JACK-PLUG 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2702K000M.75M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK-PLUG 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2702K000M.75M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2702K0 Series

Part	Overall Impedance	Cable Type	1st Connector	2nd Connector Mounting Type	1st Connector Mounting Type	1st Contact Gender	Style	Features	2nd Connector	2nd Contact Gender	Length	Length	Length	Color	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-2702K000M003M	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male	3 m	118.1 in	9.8 '	Black	6000 MHz
Amphenol Custom Cable Q-2702K000M001M	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male	1 m	39.4 in	3.3 ft	Black	6000 MHz
Amphenol Custom Cable Q-2702K000M0.5M	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male	50 cm	19.69 "		Black	6000 MHz
Amphenol Custom Cable Q-2702K000M002M	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male	2 m	78.7 in	6.6 ft	Black	6000 MHz
Amphenol Custom Cable Q-2702K000M.75M	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male	750 mm	29.53 "		Black	6000 MHz
Amphenol Custom Cable Q-2702K000M036i	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male	91.44 cm	36 in		Black	6000 MHz
Amphenol Custom Cable Q-2702K000M072i	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male	1.8 m	72 in	6 ft	Black	6000 MHz
Amphenol Custom Cable Q-2702K000M108i	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male	2.7 m	108 in	9 ft	Black	6000 MHz
Amphenol Custom Cable Q-2702K000M018i	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male				Black	6000 MHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2702K000M012i	50 Ohms	LMR 240	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	N-Type to N-Type	Shielded	N-Type Plug	Male	304.8 mm	12 "		Black	6000 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 114.87
		25	$ 112.69
		50	$ 110.51
		100	$ 108.33
		250	$ 106.15

Description

General part information

Q-2702K0 Series

Cable Assembly Coaxial N-Type to N-Type LMR 240 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
