122192RP
ActiveAmphenol RF

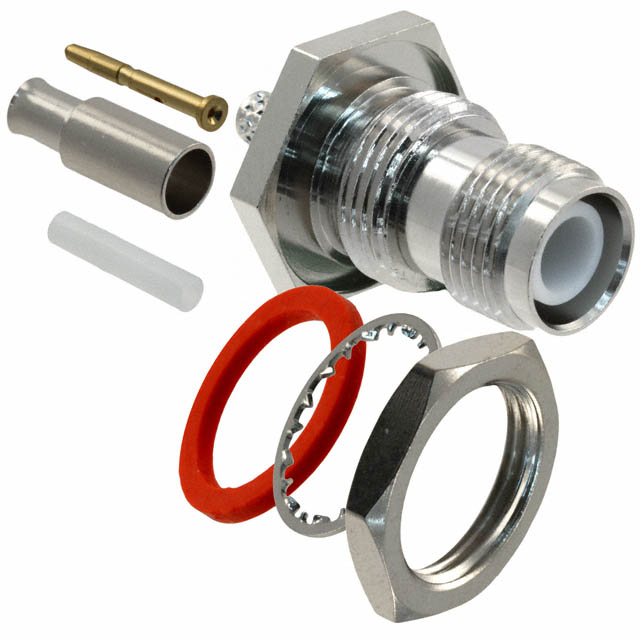

CONN RP-TNC JACK STR 50OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
122192RP
ActiveAmphenol RF
CONN RP-TNC JACK STR 50OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 122192RP |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-TNC |
| Connector Type | Male Pin, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Sleeve, 1 Ferrule, 1 Contact, 1 Gasket, 1 Nut, 1 Insulator, 1 Connector, 1 Lockwasher |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.26 | |
| 10 | $ 8.33 | |||
| 25 | $ 7.85 | |||
| 50 | $ 7.65 | |||
| 100 | $ 7.45 | |||
| 300 | $ 6.64 | |||
| 500 | $ 6.24 | |||
| 1000 | $ 5.51 | |||
Description
General part information
122192 Series
RP-TNC Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
