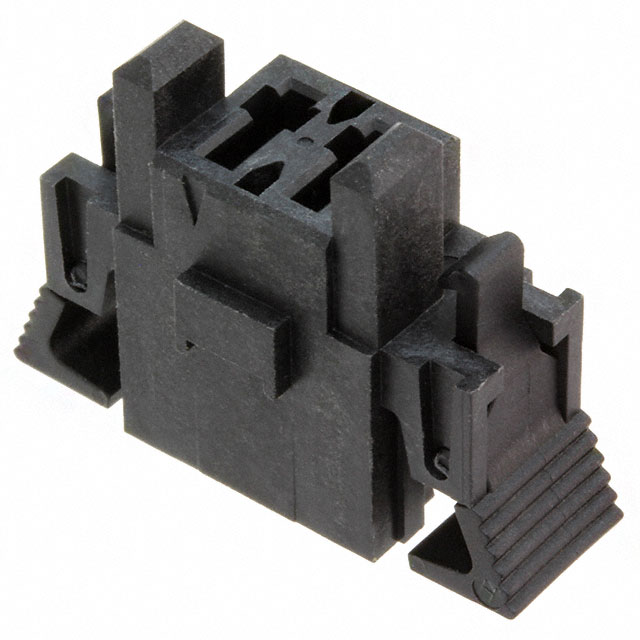

IMS5-02-02 - IMS5-02-02

IMS5-02-02

Active
Samtec Inc.

CONNECTOR HOUSING, IMS5 SERIES, RECEPTACLE, 2 POSITIONS, 5 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIMS5 DatasheetCC46L Series Other Related Documents 03+2
IMS5-02-02 - IMS5-02-02

IMS5-02-02

Active
Samtec Inc.

CONNECTOR HOUSING, IMS5 SERIES, RECEPTACLE, 2 POSITIONS, 5 MM

Deep-Dive with AI

DocumentsIMS5 DatasheetCC46L Series Other Related Documents 03+2

Technical Specifications

Parameters and characteristics for this part

SpecificationIMS5-02-02
ColorBlack
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Blade Socket
Fastening TypeLatch Lock
FeaturesPanel Lock
Material - InsulationPolyamide (PA66), Nylon 6/6
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions2
Number of Rows1
Pitch [x]5 mm
Pitch [x]0.197 in
Stacking DirectionSide to Side

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.88
50$ 1.53
100$ 1.30
500$ 1.19
NewarkEach 1$ 1.82
10$ 1.65
50$ 1.48
100$ 1.26
250$ 1.21
500$ 1.15
1000$ 0.96

Description

General part information

IMS5-02 Series

2 Position Blade Type Power Housing Connector Receptacle Black 0.197" (5.00mm)
