P409EL Series

Part	Mounting Type	Resistance - Channel (Ohms)	Voltage - Rated	ESD Protection	Operating Temperature (Min)	Operating Temperature (Max)	Type	Applications	Technology	Capacitance	Resistance	Size / Dimension Length	Size / Dimension Width	Filter Order	Package / Case	Height	Number of Channels
KEMET P409EL474M275AH101	Through Hole	100 Ohm	275 VAC	No	-40 °C	85 °C	Low Pass	General Purpose	RC	0.47 µF	100 Ohms	1.201 in	0.602 in	1	Radial	0.866 in	1
KEMET P409EL474M275AH151	Through Hole	150 Ohm	275 VAC	No	-40 °C	85 °C	Low Pass	General Purpose	RC	0.47 µF	150 Ohm	1.201 in	0.602 in	1	Radial	0.866 in	1
KEMET P409EL474M275AH330	Through Hole	33 Ohm	275 VAC	No	-40 °C	85 °C	Low Pass	General Purpose	RC	0.47 µF	33 Ohms	1.201 in	0.602 in	1	Radial	0.866 in	1
KEMET P409EL224M275AH471	Through Hole	470 Ohm	275 VAC	No	-40 °C	85 °C	Low Pass	General Purpose	RC	0.22 µF	470 Ohm	1.201 in	0.602 in	1	Radial	0.866 in	1

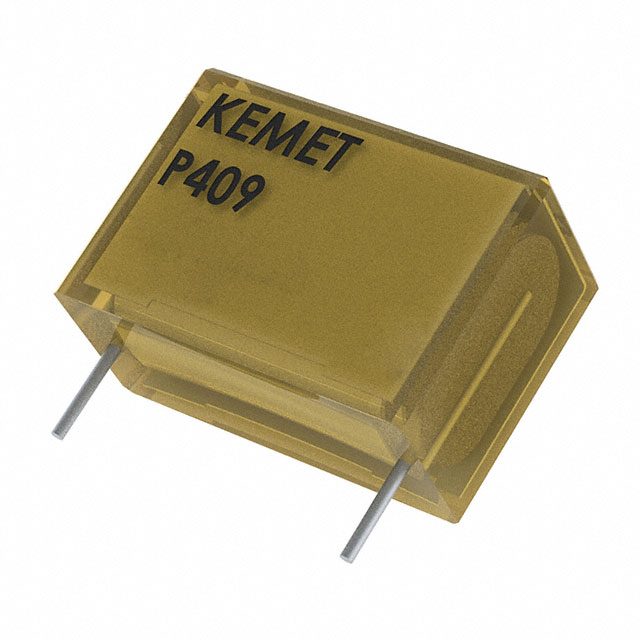

KEMET P409EL474M275AH680	Through Hole	68 Ohm	275 VAC	No	-40 °C	85 °C	Low Pass	General Purpose	RC	0.47 µF	68 Ohm	1.201 in	0.602 in	1	Radial	0.866 in	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.
