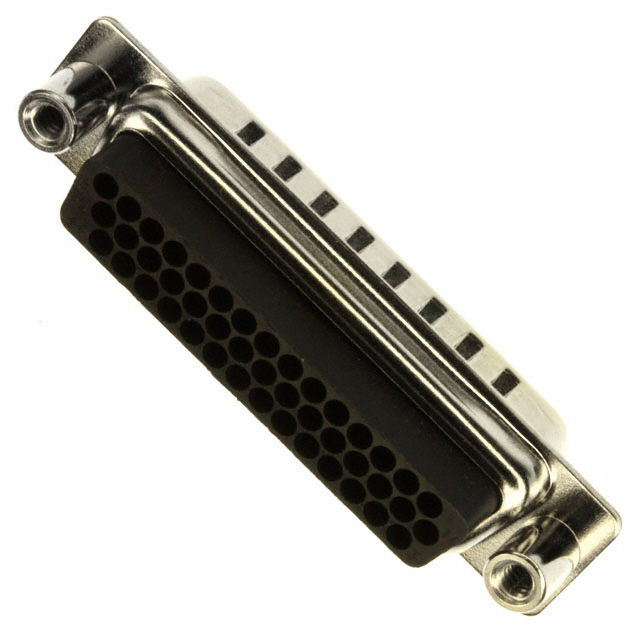

Specification	180-044-273L020

Connector Layout	DB, B, High Density
Connector Style	High Density, D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Finish	Nickel Plated
Flange Feature	Cable Side (4-40)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	44
Number of Rows	3
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	3

180-044 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Color	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Connector Type	Current Rating	Number of Positions	Shell Size	Connector Layout	Contact Finish	Features	Connector Style	Termination	Contact Type	Mounting Type	Flange Feature	Finish	Shell Material	Number of Rows	Material Flammability Rating	Note	Contact Material	Contact Form
NorComp Inc. 180-044-112-021	-50 °C	100 °C	Black	Glass Filled Polyester	0	Flash	Flash	Male Pins Plug	2 A	44	3	B DB High Density	Gold	Grounding Indents	D-Sub High Density	Solder	Signal	Panel Mount Through Hole	Board Side (4-40)	Tin Plated	Steel	3	UL94 V-0
NorComp Inc. 180-044-273L020	-50 °C	100 °C						Receptacle for Female Contacts		44	3	B DB High Density			D-Sub High Density		Signal	Free Hanging (In-Line)	Cable Side (4-40)	Nickel Plated	Steel	3		Contacts Not Included
NorComp Inc. 180-044-272L030	-50 °C	100 °C						Receptacle for Female Contacts		44	3	B DB High Density		Shielded	D-Sub High Density		Signal	Free Hanging (In-Line)	Mating Side (4-40)	Tin Plated	Steel	3		Contacts Not Included
NorComp Inc. 180-044-101L021	-50 °C	100 °C		Polybutylene Terephthalate (PBT)	0	Flash	Flash	Male Pins Plug	5 A	44	3	B DB High Density	Gold	Shielded	D-Sub High Density	Solder Cup	Signal	Panel Mount	Cable Side (4-40)	Yellow Chromate Plated	Steel	3	UL94 V-0		Brass
NorComp Inc. 180-044-213R001	-50 °C	100 °C		Polybutylene Terephthalate (PBT)	0	Flash	Flash	Female Sockets Receptacle	3 A	44	3	B DB High Density	Gold	Shielded	D-Sub High Density	Solder	Signal	Panel Mount Through Hole	Housing Shell (Unthreaded)	Nickel Plated	Steel	3	UL94 V-0		Brass
NorComp Inc. 180-044-201L001	-50 °C	100 °C		Polybutylene Terephthalate (PBT)	0	Flash	Flash	Female Sockets Receptacle	5 A	44	3	B DB High Density	Gold	Shielded	D-Sub High Density	Solder Cup	Signal	Panel Mount	Housing Shell (Unthreaded)	Yellow Chromate Plated	Steel	3	UL94 V-0		Brass	Stamped
NorComp Inc. 180-044-202L021	-50 °C	100 °C		Polybutylene Terephthalate (PBT)	0	Flash	Flash	Female Sockets Receptacle	5 A	44	3	B DB High Density	Gold	Shielded	D-Sub High Density	Solder Cup	Signal	Panel Mount	Cable Side (4-40)	Tin Plated	Steel	3	UL94 V-0		Brass
NorComp Inc. 180-044-212-001	-50 °C	100 °C	Black	Glass Filled Polyester	0	Flash	Flash	Female Sockets Receptacle	2 A	44	3	B DB High Density	Gold		D-Sub High Density	Solder	Signal	Panel Mount Through Hole	Housing Shell (Unthreaded)	Tin Plated	Steel	3	UL94 V-0
NorComp Inc. 180-044-102L031	-50 °C	100 °C		Polybutylene Terephthalate (PBT)	0	Flash	Flash	Male Pins Plug	5 A	44	3	B DB High Density	Gold	Grounding Indents Shielded	D-Sub High Density	Solder Cup	Signal	Panel Mount	Mating Side (4-40)	Tin Plated	Steel	3	UL94 V-0		Brass
NorComp Inc. 180-044-272L020	-50 °C	100 °C						Receptacle for Female Contacts		44	3	B DB High Density		Shielded	D-Sub High Density		Signal	Free Hanging (In-Line)	Cable Side (4-40)	Tin Plated	Steel	3		Contacts Not Included
