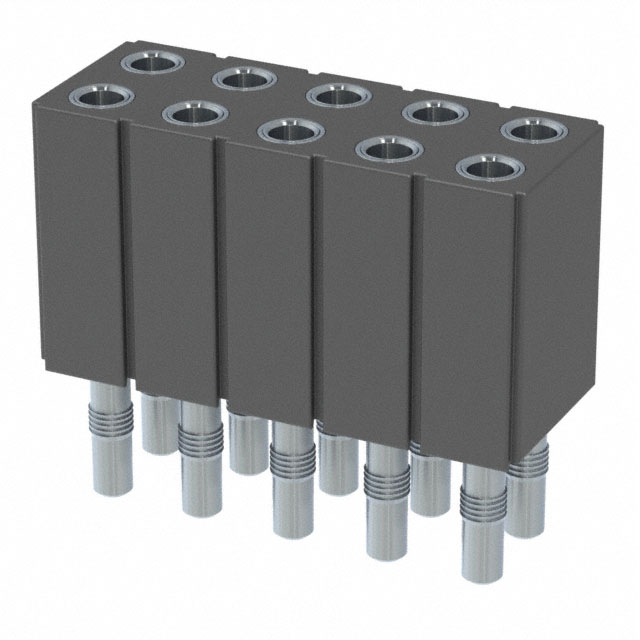

803-99-010-62-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 10POS 0.1 TIN-LEAD PCB

Deep-Dive with AI

Search across all available documentation for this part.

803-99-010-62-001000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 10POS 0.1 TIN-LEAD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	803-99-010-62-001000

Connector Type	Receptacle
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	0.143 in
Contact Length - Post [x]	3.63 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder, Press-Fit

803-99 Series

...

Part	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Material	Insulation Material	Mounting Type	Contact Finish - Post	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Rows	Connector Type	Number of Positions Loaded	Insulation Color	Pitch - Mating	Pitch - Mating	Fastening Type	Current Rating (Amps)	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Insulation Height
Mill-Max Manufacturing Corp. 803-99-086-62-001000	86	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket	7 mm	0.276 in	2.54 çm	100 çin	Press-Fit Solder	2	Receptacle	All	Black	0.1 in	2.54 mm	Push-Pull	4.5 A	Circular	0.143 in	3.63 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 803-99-070-10-001000	70	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket	7 mm	0.276 in	2.54 çm	100 çin	Solder	2	Receptacle	All	Black	0.1 in	2.54 mm	Push-Pull	4.5 A	Circular			-55 °C	125 °C	0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-99-010-62-001000	10	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket	7 mm	0.276 in	2.54 çm	100 çin	Press-Fit Solder	2	Receptacle	All	Black	0.1 in	2.54 mm	Push-Pull	4.5 A	Circular	0.143 in	3.63 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 803-99-026-10-004000	26	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket		0.272 "	2.54 çm	100 çin	Solder	2	Receptacle	All	Black	0.1 in	2.54 mm	Push-Pull	4.5 A	Circular			-55 °C	125 °C	0.118 in	3 mm	6.91 mm
Mill-Max Manufacturing Corp. 803-99-024-10-001000	24	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket	7 mm	0.276 in	2.54 çm	100 çin	Solder	2	Receptacle	All	Black	0.1 in	2.54 mm	Push-Pull	4.5 A	Circular			-55 °C	125 °C	0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-99-002-10-004000	2	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket		0.272 "	2.54 çm	100 çin	Solder	2	Receptacle	All	Black			Push-Pull	4.5 A	Circular			-55 °C	125 °C	0.118 in	3 mm	6.91 mm
Mill-Max Manufacturing Corp. 803-99-026-10-002000	26	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket	4.2 mm	0.165 in	2.54 çm	100 çin	Solder	2	Receptacle	All	Black	0.1 in	2.54 mm	Push-Pull	4.5 A	Circular	0.125 in	3.18 mm	-55 °C	125 °C
Mill-Max Manufacturing Corp. 803-99-034-10-001000	34	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket	7 mm	0.276 in	2.54 çm	100 çin	Solder	2	Receptacle	All	Black	0.1 in	2.54 mm	Push-Pull	4.5 A	Circular			-55 °C	125 °C	0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-99-092-10-001000	92	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket	7 mm	0.276 in	2.54 çm	100 çin	Solder	2	Receptacle	All	Black	0.1 in	2.54 mm	Push-Pull	4.5 A	Circular			-55 °C	125 °C	0.118 in	3 mm
Mill-Max Manufacturing Corp. 803-99-060-10-004000	60	2.54 mm	0.1 in	Tin-Lead	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Tin-Lead	UL94 V-0	200 µin	5.08 µm	Female Socket		0.272 "	2.54 çm	100 çin	Solder	2	Receptacle	All	Black	0.1 in	2.54 mm	Push-Pull	4.5 A	Circular			-55 °C	125 °C	0.118 in	3 mm	6.91 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 12.06

Description

General part information

803-99 Series

10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin-Lead
