DG2737DN-T1-E4
ObsoleteVishay General Semiconductor - Diodes Division
IC SWITCH SPDT X 1 8OHM 8MINIQFN
Deep-Dive with AI
Search across all available documentation for this part.
DG2737DN-T1-E4
ObsoleteVishay General Semiconductor - Diodes Division
IC SWITCH SPDT X 1 8OHM 8MINIQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DG2737DN-T1-E4 |
|---|---|
| -3db Bandwidth | 720 MHz |
| Channel Capacitance (CS(off), CD(off)) [custom] | 3.8 pF |
| Channel Capacitance (CS(off), CD(off)) [custom] | 4.4 pF |
| Channel-to-Channel Matching (ΔRon) | 100 mOhm |
| Charge Injection | 10.4 pC |
| Crosstalk | -109 dB |
| Current - Leakage (IS(off)) (Max) | 10 nA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) [Max] | 8 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-UFQFN |
| Supplier Device Package | 8-miniQFN |
| Supplier Device Package [x] | 1.4 |
| Supplier Device Package [y] | 1.4 |
| Switch Circuit | SPDT |
| Switch Time (Ton, Toff) (Max) | 60 ns, 50 ns |
| Voltage - Supply, Single (V+) [Max] | 4.3 V |
| Voltage - Supply, Single (V+) [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.53 | |||
| 25 | $ 0.50 | |||
| Tape & Reel (TR) | 6000 | $ 0.40 | ||
| 12000 | $ 0.39 | |||
Description
General part information
DG2737 Series

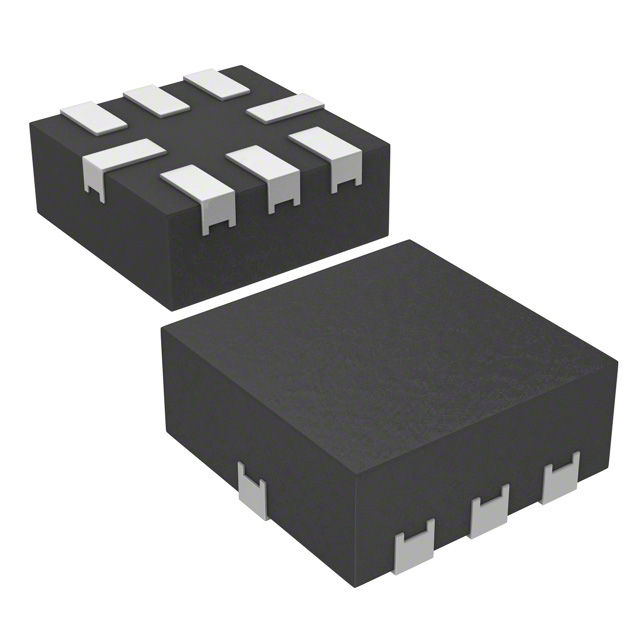

1 Circuit IC Switch 2:1 8Ohm 8-miniQFN (1.4x1.4)
