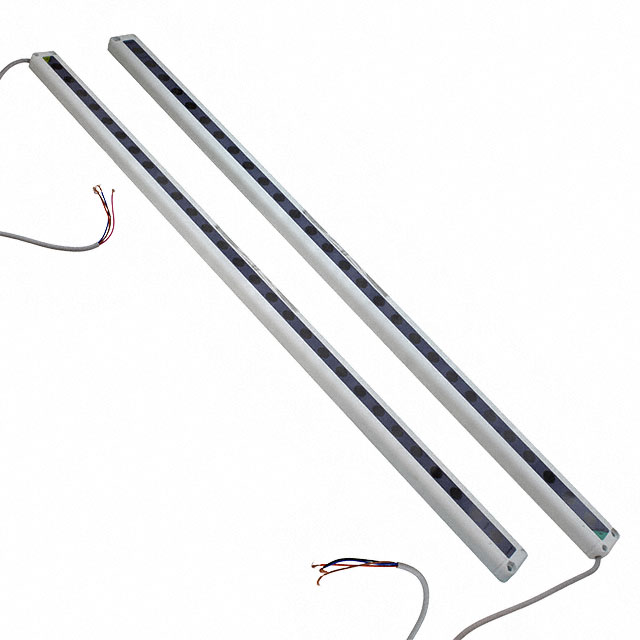

NA2-N28-PN

Active

Panasonic Industrial Automation Sales

SENSOR THROUGH-BEAM 540MM PNP

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SENSOR THROUGH-BEAM 540MM PNP

Technical Specifications

Parameters and characteristics for this part

Specification	NA2-N28-PN

Cable Length	118.1 in
Cable Length	3000 mm
Connection Method	Cable
Ingress Protection	IP40
Light Source	Infrared (950nm)
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	PNP - Open Collector
Response Time	10 ms
Sensing Distance	540 mm
Sensing Distance	21.26 in
Sensing Method	Through-Beam
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Output Configuration	Ingress Protection	Sensing Distance	Sensing Distance	Connection Method	Cable Length	Cable Length	Sensing Method	Light Source	Response Time	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]
Panasonic Industrial Automation Sales NA2-N28-PN	PNP - Open Collector	IP40	540 mm	21.26 in	Cable	118.1 in	3000 mm	Through-Beam	Infrared (950nm)	10 ms	55 °C	-10 °C	12 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1200.00

General part information

Through-Beam Optical Sensor 21.260" (540mm) PNP - Open Collector

Technical documentation and resources

No documents available
