000-36825
ActiveAMPHENOL RF

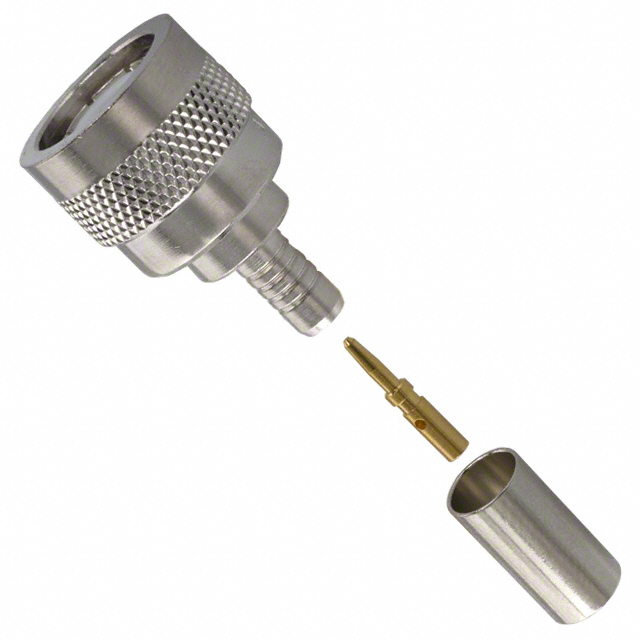

CONN TNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
000-36825
ActiveAMPHENOL RF
CONN TNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 000-36825 | 000-36 Series |
|---|---|---|
| Body Finish | Nickel | Nickel |
| Body Material | Brass | Brass |
| Cable Group | 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58 | 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, RG-55 |
| Cable Group | - | 142 - 400 |
| Center Contact Material | Brass | Brass, Beryllium Copper, Phosphor Bronze |
| Center Contact Plating | Gold | Gold, Silver |
| Connector Style | TNC | TNC, BNC, N Type |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | Crimp | Crimp, Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Bayonet Lock |
| Frequency - Max [Max] | 11 GHz | 1 - 11 GHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | - | 0.2 dB |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Flange |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 165 °C | 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Shield Termination | Crimp | Crimp, Clamp |
| Voltage Rating | 500 V | 500 V |
000-36 Series
CONN TNC PLUG STR 50 OHM CRIMP
| Part | Mounting Type | Body Finish | Number of Ports | Housing Color | Impedance | Mating Cycles | Includes | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Contact Termination | Connector Style | Body Material | Center Contact Plating | Connector Type | Cable Group | Dielectric Material | Frequency - Max [Max] | Center Contact Material | Insertion Loss | Cable Group | Fastening Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL RF 000-36825 | Free Hanging (In-Line) | Nickel | 1 | Silver | 50 Ohms | 500 | 1 Connector, 1 Contact, 1 Ferrule | 500 V | -65 ░C | 165 °C | Crimp | Crimp | TNC | Brass | Gold | Male Pin, Plug | 141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58 | Polytetrafluoroethylene (PTFE) | 11 GHz | Brass | ||||
AMPHENOL RF 000-36875 | Free Hanging (In-Line) | Nickel | 1 | Silver | 50 Ohms | 500 | 1 Connector, 1 Contact, 1 Ferrule | 500 V | -65 ░C | 165 °C | Crimp | Crimp, Solder | BNC | Brass | Gold | Male Pin, Plug | RG-55 | Polytetrafluoroethylene (PTFE) | 1 GHz | Brass | 0.2 dB | 142, 223, 400 | Bayonet Lock | |
AMPHENOL RF 000-36250 | Nickel | 1 | Silver | 50 Ohms | 500 | Clamp | Solder | N Type | Brass | Silver | Female Socket, Jack | 141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58 | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Flange | |||||||||
AMPHENOL RF 000-36800 | Free Hanging (In-Line) | Nickel | 1 | Silver | 50 Ohms | 500 | 1 Connector, 1 Contact, 1 Ferrule | 500 V | -65 ░C | 165 °C | Crimp | Crimp | BNC | Brass | Gold | Female Socket, Jack | 141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58 | Polytetrafluoroethylene (PTFE) | 4 GHz | Phosphor Bronze | 0.2 dB | Bayonet Lock | ||
AMPHENOL RF 000-36800-RFX | Free Hanging (In-Line) | Nickel | 1 | Silver | 50 Ohms | 500 | 500 V | -65 ░C | 165 °C | Crimp | Crimp | BNC | Brass | Gold | Female Socket, Jack | 141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58 | Polytetrafluoroethylene (PTFE) | 4 GHz | Phosphor Bronze | 0.2 dB | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.88 | |
| 10 | $ 9.12 | |||
| 25 | $ 8.24 | |||
| 50 | $ 7.64 | |||
| 100 | $ 7.10 | |||
| 250 | $ 6.46 | |||
| 500 | $ 6.03 | |||
| 1000 | $ 5.64 | |||
Description
General part information
000-36 Series
TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
