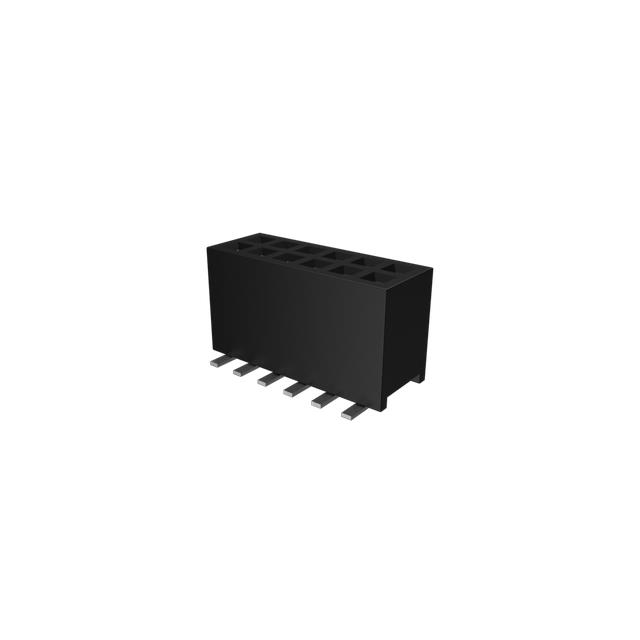

20021321-10016C4LF

Active

Amphenol ICC (FCI)

RECEPT VT SMT

Deep-Dive with AI

Search across all available documentation for this part.

Documents10166143-00020C1LF minitek127 productpresentation Other Related Document +2

20021321-10016C4LF

Active

Amphenol ICC (FCI)

RECEPT VT SMT

Deep-Dive with AI

Documents10166143-00020C1LF minitek127 productpresentation Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20021321-10016C4LF

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

20021321 Series

...

Part	Number of Positions Loaded	Features	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Applications	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Connector Type	Number of Rows	Termination	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Material	Mounting Type	Material Flammability Rating	Contact Finish - Post	Contact Type	Contact Shape	Contact Finish Thickness - Mating	Number of Positions
Amphenol ICC (FCI) 20021321-00020C6LF	All	Pick and Place	0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black	15 µin	0.38 µm	Gold GXT™	Receptacle	2	Solder	0.05 in	1.27 mm	20	Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square
Amphenol ICC (FCI) 20021321-00028T1LF	All		0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black			Gold	Receptacle	2	Solder	0.05 in	1.27 mm	28	Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square	Flash
Amphenol ICC (FCI) 20021321-10016C4LF	All	Board Guide Pick and Place	0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black	10 çin	0.25 çm	Gold	Receptacle	2	Solder	0.05 in	1.27 mm		Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square		16
Amphenol ICC (FCI) 20021321-00026T1LF	All		0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black			Gold	Receptacle	2	Solder	0.05 in	1.27 mm	26	Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square	Flash
Amphenol ICC (FCI) 20021321-00050T4LF	All		0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black	10 çin	0.25 çm	Gold	Receptacle	2	Solder	0.05 in	1.27 mm	50	Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square
Amphenol ICC (FCI) 20021321-10050D4LF	All	Board Guide Pick and Place	0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black	10 çin	0.25 çm	Gold	Receptacle	2	Solder	0.05 in	1.27 mm	50	Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square
Amphenol ICC (FCI) 20021321-00080D1LF	All	Pick and Place	0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black			Gold	Receptacle	2	Solder	0.05 in	1.27 mm	80	Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square	Flash
Amphenol ICC (FCI) 20021321-00006C8LF	All	Pick and Place	0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black	30 Áin	0.76 Ám	Gold GXT™	Receptacle	2	Solder	0.05 in	1.27 mm	6	Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square
Amphenol ICC (FCI) 20021321-00020T4LF	All		0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black	10 çin	0.25 çm	Gold	Receptacle	2	Solder	0.05 in	1.27 mm	20	Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square
Amphenol ICC (FCI) 20021321-00080D4LF	All	Pick and Place	0.177 in	4.5 mm	0.05 in	1.27 mm	Plastic	2.54 µm	100 µin	-40 °C	105 ░C	Push-Pull	General Purpose Industrial Telecommunications	Black	10 çin	0.25 çm	Gold	Receptacle	2	Solder	0.05 in	1.27 mm	80	Phosphor Bronze	Surface Mount	UL94 V-0	Tin	Female Socket	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.47
		10	$ 1.12
		100	$ 0.86
	Tape & Reel (TR)	700	$ 0.78

Description

General part information

20021321 Series

16 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold

Documents

Technical documentation and resources

10166143-00020C1LF

minitek127 productpresentation Other Related Document

20021321 Datasheet/Drawing

Datasheet
