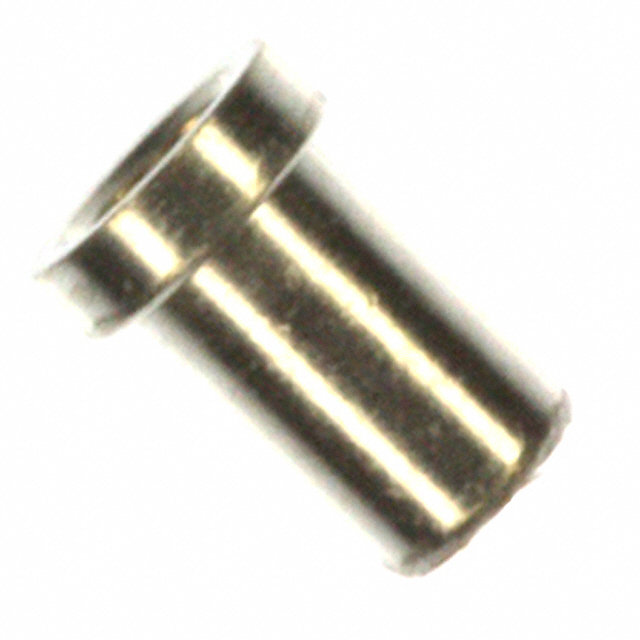

4015-0-67-80-30-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4015-0-67-80-30-27-10-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Features	Knockout Bottom (Organic Fiber Plug®)
Flange Diameter [diameter]	0.068 in
Flange Diameter [diameter]	1.73 mm
Length - Overall [x]	0.1 "
Length - Overall [x]	2.54 mm
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	2.54 mm
Socket Depth	0.1 "
Tail Type	No Tail
Termination	Solder

4015-0 Series

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Tail Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features
Mill-Max Manufacturing Corp. 4015-0-15-80-30-84-10-0	0.057 "	1.45 mm	0.068 in	1.73 mm	Tin	2.54 µm	100 µin	2.54 mm	0.1 "	0.1 "	2.54 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	Beryllium Copper	-55 °C	125 °C	Solder
Mill-Max Manufacturing Corp. 4015-0-15-80-30-14-10-0	0.057 "	1.45 mm	0.068 in	1.73 mm	Gold	0.25 Ám	10 Áin	2.54 mm	0.1 "	0.1 "	2.54 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	Beryllium Copper	-55 °C	125 °C	Solder
Mill-Max Manufacturing Corp. 4015-0-15-15-30-14-10-0	0.057 "	1.45 mm	0.068 in	1.73 mm	Gold	0.25 Ám	10 Áin	2.54 mm	0.1 "	0.1 "	2.54 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	Beryllium Copper	-55 °C	125 °C	Solder
Mill-Max Manufacturing Corp. 4015-0-43-80-30-27-10-0	0.057 "	1.45 mm	0.068 in	1.73 mm	Gold	0.76 Ám	30 Áin	2.54 mm	0.1 "	0.1 "	2.54 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	Beryllium Copper	-55 °C	125 °C	Solder	Knockout Bottom (Organic Fiber Plug®)
Mill-Max Manufacturing Corp. 4015-0-67-80-30-27-10-0	0.057 "	1.45 mm	0.068 in	1.73 mm	Gold	0.76 Ám	30 Áin	2.54 mm	0.1 "	0.1 "	2.54 mm	0.025 "	0.64 mm	0.015 "	0.38 mm	No Tail	Beryllium Copper	-55 °C	125 °C	Solder	Knockout Bottom (Organic Fiber Plug®)
