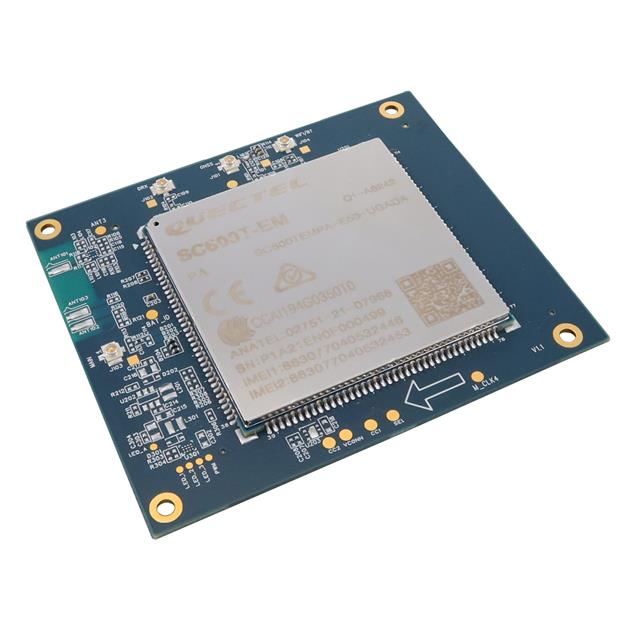

SC600TEMPA-E53-TA0AA

Active

Quectel

RF TXRX MOD BT NAV WIFISMD

Deep-Dive with AI

Search across all available documentation for this part.

SC600TEMPA-E53-TA0AA

Active

Quectel

RF TXRX MOD BT NAV WIFISMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC600TEMPA-E53-TA0AA

Antenna Type	Antenna Not Included
Data Rate	300 Mbps
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-35 °C
Package / Case	Module
Power - Output	33 dBm
Protocol	Bluetooth v3.0, Bluetooth v4.2, GNSS, GLONASS, GPS, 802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v4.1, Beidou
RF Family/Standard	WiFi, Bluetooth, Navigation
Serial Interfaces	UART, I2C, SPI, GPIO, SDIO, ADC, I2S, USB
Voltage - Supply [Max]	4.4 V
Voltage - Supply [Min]	3.55 V

SC600 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Serial Interfaces	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Frequency	Data Rate	Power - Output	RF Family/Standard	Mounting Type	Utilized IC / Part
Quectel SC600YJPPA-E53-TA0AA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600TEMPC-E56-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount	Qualcomm® Snapdragon MSM8953-B
Quectel SC600YEMPA-E53-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount	Qualcomm® Snapdragon SDM450
Quectel SC600YWFNA-E53-UNNNA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600TNAPA-E53-TA0AA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600YNAPA-E53-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount	Qualcomm® Snapdragon SDM450
Quectel SC600YEMPA-E53-TA0AA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600YJPNA-E53-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600TEMPA-E53-TA0AA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600TJPPA-E53-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount	Qualcomm® Snapdragon MSM8953-B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 156.25

Description

General part information

SC600 Series

Bluetooth, Navigation, WiFi 802.11a/b/g/n/ac, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, GLONASS, GPS, GNSS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available
