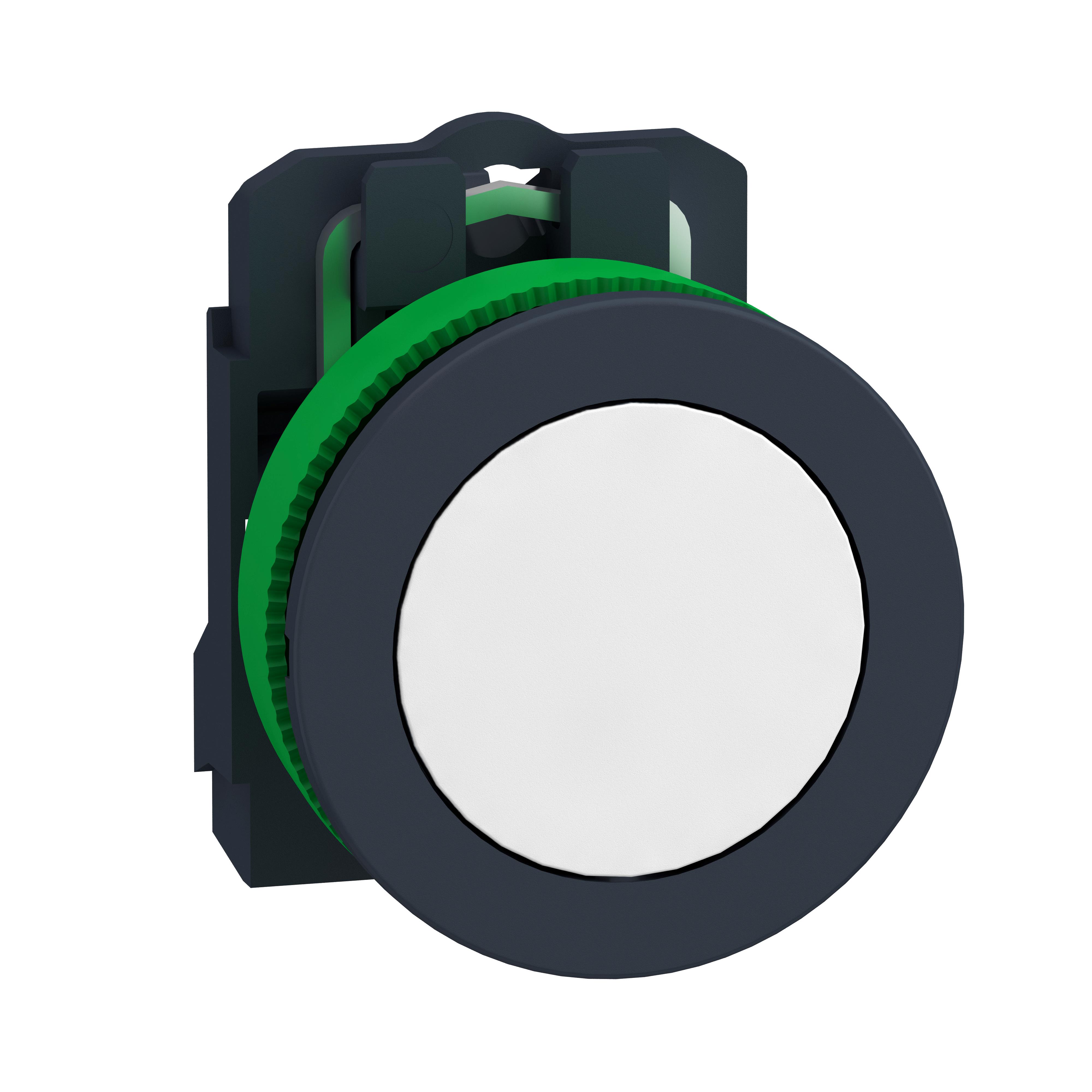

XB5FVB1

Active

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY XB5, ANTIMICROBIAL PILOT

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY XB5, ANTIMICROBIAL PILOT

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Type	Lamp Color	Voltage [Min]	Voltage [Max]	Panel Cutout Shape	Termination Style	Current	Lens Color	Voltage
SQUARE D BY SCHNEIDER ELECTRIC XB5FVM3	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	Green	230 V	240 V	Round	Screw Terminal	14 mA	Green
SQUARE D BY SCHNEIDER ELECTRIC XB5FVB4	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC/DC	LED	Red			Round	Screw Terminal	18 mA	Red	24 V
SQUARE D BY SCHNEIDER ELECTRIC XB5FVG1	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	White	110 V	120 V	Round	Screw Terminal	14 mA	White
SQUARE D BY SCHNEIDER ELECTRIC XB5FVB3	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC/DC	LED	Green			Round	Screw Terminal	18 mA	Green	24 V
SQUARE D BY SCHNEIDER ELECTRIC XB5FVB6	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC/DC	LED	Blue			Round	Screw Terminal	18 mA	Blue	24 V
SQUARE D BY SCHNEIDER ELECTRIC XB5FVG3	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	Green	110 V	120 V	Round	Screw Terminal	14 mA	Green
SQUARE D BY SCHNEIDER ELECTRIC XB5FVM5	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	Orange	230 V	240 V	Round	Screw Terminal	14 mA	Orange
SQUARE D BY SCHNEIDER ELECTRIC XB5FVB1	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC/DC	LED	White			Round	Screw Terminal	18 mA	White	24 V
SQUARE D BY SCHNEIDER ELECTRIC XB5FVG6	13 IP66 IP67 IP69 IP69K NEMA 4X	1.2 in	30.5 mm	AC	LED	Blue	110 V	120 V	Round	Screw Terminal	14 mA	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 79.12

General part information

LED Panel Indicator White 24V 18mA Screw Terminal
