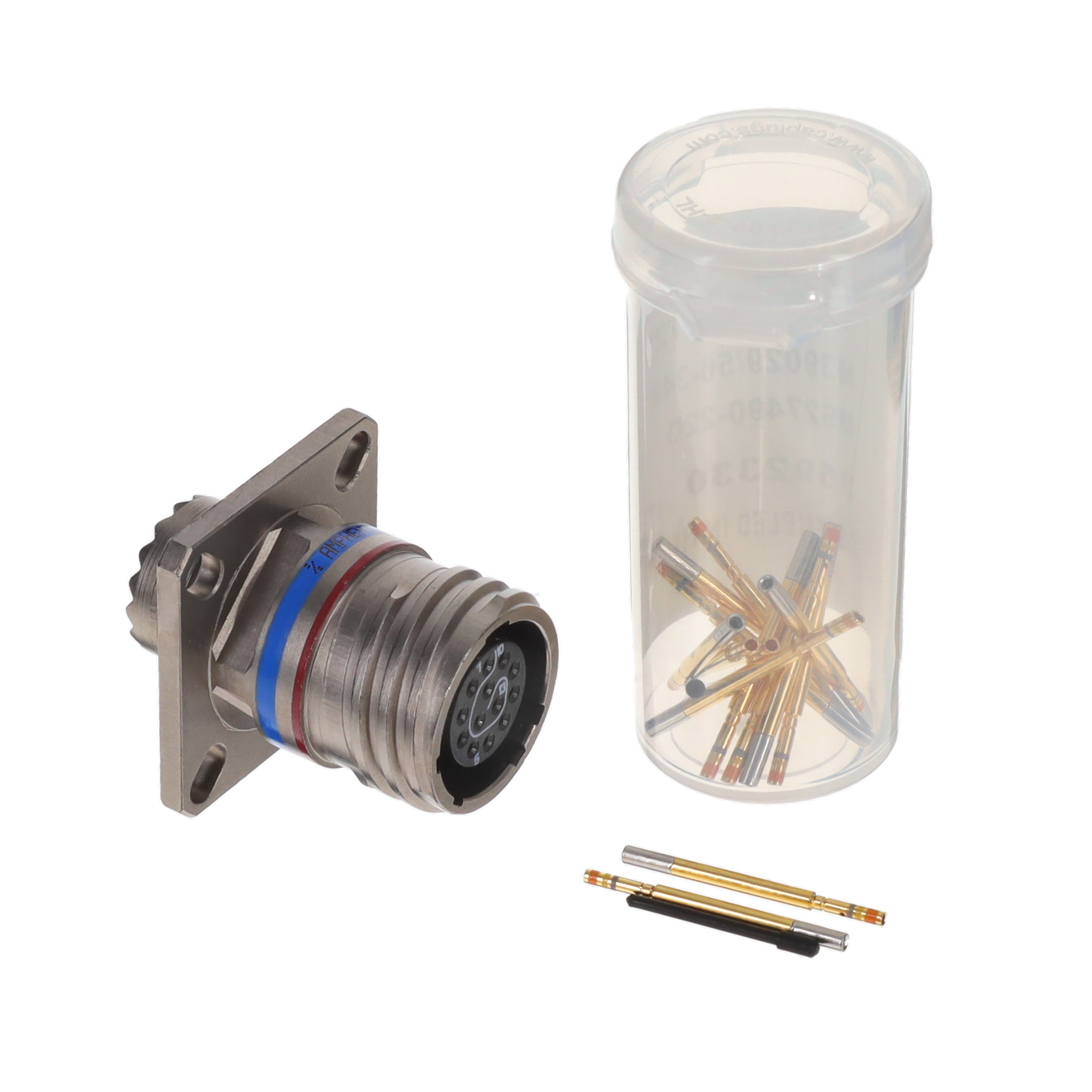

Specification	D38999/20TB35SN

Applications	Military, Aerospace, Marine, Aviation
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating	5 A
Fastening Type	Threaded
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	13
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Durmalon™
Shell Material	Aluminum
Shell Size - Insert (Maximum)	35
Shell Size - Insert (Minimum)	11
Shell Size (MIL)	B
Shielding	Shielded
Termination	Crimp

D38999/20TB Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Ingress Protection	Mounting Feature	Shell Finish	Orientation	Applications	Contact Material	Connector Type	Termination	Contact Finish - Mating	Primary Material	Shielding	Current Rating	Number of Positions	Grade	Shell Size (MIL)	Contact Finish Thickness - Mating	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Qualification	Fastening Type	Shell Material	Material Flammability Rating	Housing Color	Type	Contact Size	Contact Type	Insert Material	Shell Size - Insert Width	Shell Size - Insert Length
Amphenol Aerospace Operations D38999/20TB35SN	-65 °C	175 °C	Panel Mount	Environment Resistant	Flange	Durmalon™	N (Normal)	Aerospace Aviation Marine Military	Copper Alloy	Female Sockets Receptacle	Crimp	Gold	Metal	Shielded	5 A	13	Military	B	50 µin	11	35	MIL-DTL-38999 Series III	Threaded	Aluminum
Amphenol Aerospace Operations D38999/20TB2PNL			Panel Mount	Waterproof	Flange	Durmalon™	N (Normal)			Plug Housing			Metal	Shielded		2		B					Threaded	Aluminum	UL94 V-0	Silver	For Male Pins	16 S	Crimp
Amphenol Aerospace Operations D38999/20TB4JA	-65 °C	125 °C	Panel Mount	Waterproof	Flange		N (Normal)	Aerospace Aviation Military	Copper Alloy	Female Sockets Receptacle	Crimp	Gold	Metal			4	Military	B				MIL-DTL-38999 Series III	Threaded		UL94 V-0					Thermoplastic
Amphenol Aerospace Operations D38999/20TB5PN			Panel Mount		Flange		N (Normal)	Aviation Marine Military		Male Pins Receptacle	Crimp	Gold		Shielded		5		B					Threaded								5 mm	11 mm
Amphenol Aerospace Operations D38999/20TB5SN			Panel Mount		Flange		N (Normal)	Aviation Marine Military		Female Sockets Receptacle	Crimp	Gold		Shielded		5		B					Threaded								5 mm	11 mm
Amphenol Aerospace Operations D38999/20TB2PAL			Panel Mount		Flange	Durmalon™	A			Plug Housing			Metal	Shielded		2		B					Threaded	Aluminum			For Male Pins	16 S	Crimp
Amphenol Aerospace Operations D38999/20TB5HN			Panel Mount		Flange		N (Normal)	Aviation Marine Military		Male Pins Receptacle	Crimp	Gold		Shielded		5		B					Threaded								5 mm	11 mm
Amphenol Aerospace Operations D38999/20TB5PA			Panel Mount		Flange		A	Aviation Marine Military		Male Pins Receptacle	Crimp	Gold		Shielded		5		B					Threaded								5 mm	11 mm
Amphenol Aerospace Operations D38999/20TB5JA			Panel Mount		Flange		A	Aviation Marine Military		Female Sockets Receptacle	Crimp	Gold		Shielded		5		B					Threaded								5 mm	11 mm
Amphenol Aerospace Operations D38999/20TB4SA	-65 °C	125 °C	Panel Mount	Waterproof	Flange		N (Normal)			Female Sockets Receptacle	Crimp	Gold	Metal			4	Military	B				MIL-DTL-38999 Series III	Threaded		UL94 V-0
