6ED003L06FXUMA1

Active

Infineon Technologies

6ED003L06 - HALF-BRIDGE BASED MO

Search across all available documentation for this part.

Active

Infineon Technologies

6ED003L06 - HALF-BRIDGE BASED MO

Technical Specifications

Parameters and characteristics for this part

Specification	6ED003L06FXUMA1

Channel Type	3-Phase
Current - Peak Output (Source, Sink) [custom]	165 mA
Current - Peak Output (Source, Sink) [custom]	375 mA
Driven Configuration	Half-Bridge
High Side Voltage - Max (Bootstrap) [Max]	620 V
Input Type	Non-Inverting
Logic Voltage - VIL, VIH [custom]	1.1 V
Logic Voltage - VIL, VIH [custom]	1.7 V
Mounting Type	Surface Mount
Number of Drivers	6
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	28-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Rise / Fall Time (Typ) [custom]	60 ns
Rise / Fall Time (Typ) [custom]	26 ns
Supplier Device Package	PG-DSO-28-17
Voltage - Supply [Max]	17.5 V
Voltage - Supply [Min]	13 V

Part	Number of Drivers	Supplier Device Package	Channel Type	Driven Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Gate Type	High Side Voltage - Max (Bootstrap) [Max]	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Input Type	Package / Case	Package / Case	Package / Case [y]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [x]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]
Infineon Technologies 6ED003L02F2XUMA1	6	PG-TSSOP-28	3-Phase	Half-Bridge	-40 °C	125 ¯C	Surface Mount	IGBT MOSFET (N-Channel P-Channel)	620 V	1.1 V	1.7 V	Inverting	28-TSSOP	0.173 in	4.4 mm	60 ns	26 ns	17.5 V	13 V
Infineon Technologies 6ED003L06F2XUMA1	6	PG-DSO-28	3-Phase	Half-Bridge	-40 °C	125 ¯C	Surface Mount		620 V	1.1 V	1.7 V	Inverting	28-SOIC		7.5 mm	60 ns	26 ns	17.5 V	13 V	0.295 in
Infineon Technologies 6ED003L06FXUMA1	6	PG-DSO-28-17	3-Phase	Half-Bridge	-40 °C	105 °C	Surface Mount		620 V	1.1 V	1.7 V	Non-Inverting	28-SOIC		7.5 mm	60 ns	26 ns	17.5 V	13 V	0.295 in	165 mA	375 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	173	$ 1.74

General part information

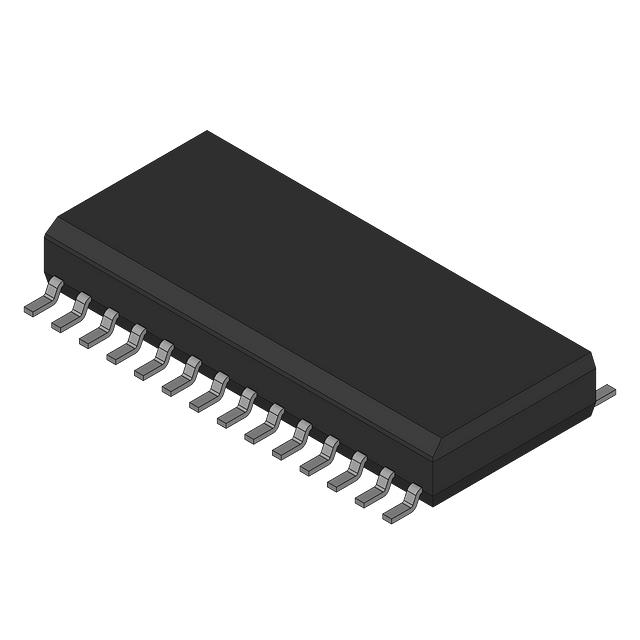

Half-Bridge Gate Driver IC Non-Inverting PG-DSO-28-17
