BHKL-750-6-01

Active

Essentra Access Solutions

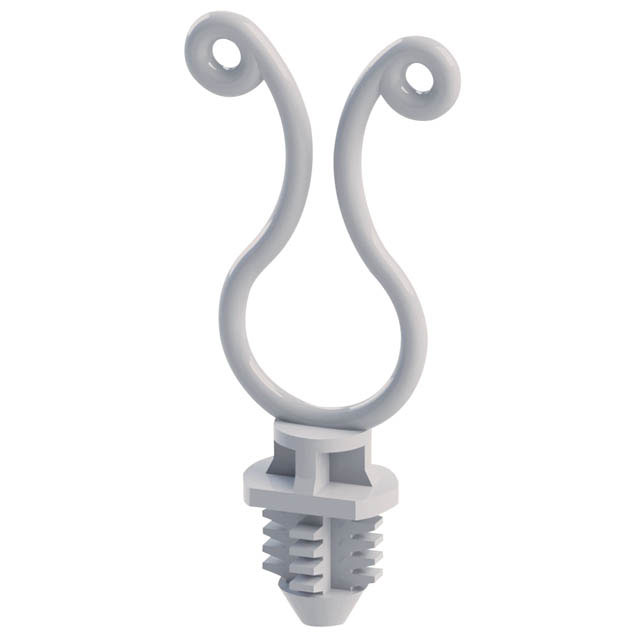

CBL CLIP TWIST LOCK FIR TREE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP TWIST LOCK FIR TREE

Technical Specifications

Parameters and characteristics for this part

Specification	BHKL-750-6-01

Color	Natural
Height [z]	1.875 in
Height [z]	47.63 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fir Tree, Blind Hole
Opening Size [Max]	20.32 mm
Opening Size [Max] [z]	0.8 in
Opening Size [Min]	17.78 mm
Opening Size [Min] [z]	0.7 in
Panel Hole Size [x]	0.328 "
Panel Hole Size [x]	8.33 mm
Panel Hole Size [y]	0.437 "
Panel Hole Size [y]	11.1 mm
Panel Thickness	0.25 "
Panel Thickness	6.35 mm
Type	Clip, Twist Lock

Part	Type	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Panel Hole Size [x]	Panel Hole Size [y]	Panel Hole Size [x]	Panel Hole Size [y]	Material Flammability Rating	Mounting Type	Color	Panel Thickness	Panel Thickness	Height [z]	Height [z]	Material	Opening Size [Min]	Opening Size [Max]	Opening Size [Max] [z]
Essentra Access Solutions BHKL-450-6-01	Clip Twist Lock	0.5 in	0.4 in	10.16 mm	12.7 mm	0.328 "	0.437 "	8.33 mm	11.1 mm	UL94 V-2	Blind Hole Fir Tree	Natural	0.25 "	6.35 mm	38.1 mm	1.5 in	Polyamide (PA66) Nylon 6/6
Essentra Access Solutions BHKL-750-8-01	Clip Twist Lock	0.8 in	0.7 in			0.328 "	0.437 "	8.33 mm	11.1 mm	UL94 V-2	Blind Hole Fir Tree	Natural	0.25 "	6.35 mm	50.8 mm	2 in	Polyamide (PA66) Nylon 6/6	17.78 mm	20.32 mm
Essentra Access Solutions BHKL-350-4-01	Clip Twist Lock	0.4 in	0.3 in	7.62 mm		0.328 "	0.437 "	8.33 mm	11.1 mm	UL94 V-2	Blind Hole Fir Tree	Natural	0.25 "	6.35 mm			Polyamide (PA66) Nylon 6/6			10.16 mm
Essentra Access Solutions BHKL-750-4-01	Clip Twist Lock	0.8 in	0.7 in			0.328 "	0.437 "	8.33 mm	11.1 mm	UL94 V-2	Blind Hole Fir Tree	Natural	0.25 "	6.35 mm	44.45 mm	1.75 in	Polyamide (PA66) Nylon 6/6	17.78 mm	20.32 mm
Essentra Access Solutions BHKL-750-6-01	Clip Twist Lock	0.8 in	0.7 in			0.328 "	0.437 "	8.33 mm	11.1 mm	UL94 V-2	Blind Hole Fir Tree	Natural	0.25 "	6.35 mm	47.63 mm	1.875 in	Polyamide (PA66) Nylon 6/6	17.78 mm	20.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Twist Lock Natural Fir Tree, Blind Hole 0.700" ~ 0.800" (17.78mm ~ 20.32mm)
