1-776261-1

Active

TE Connectivity AMP Connectors

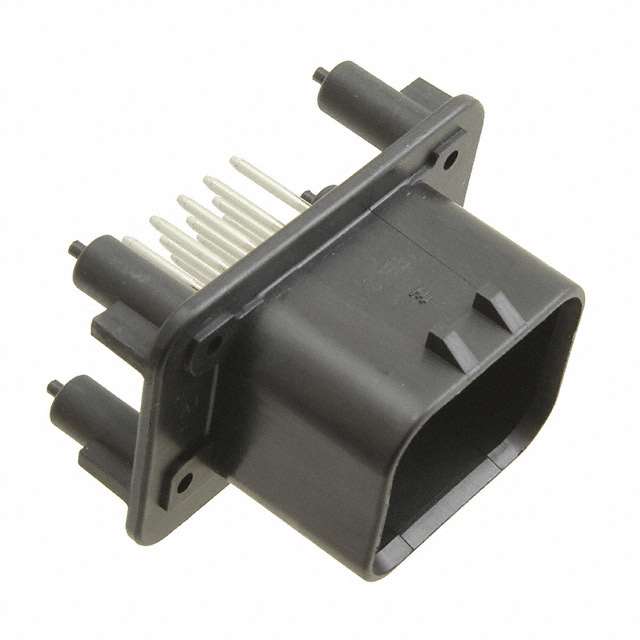

CONN HEADER VERT 14POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-776261-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 14POS 4MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-776261-1	776261 Series

Applications	Industrial, Automotive	Industrial, Automotive
Clamp Material - Plating	-	Stainless, Steel
Color	-	Green
Connector Type	Header	Header
Contact Finish - Mating	Gold-Palladium	Gold-Palladium
Contact Material	Brass	Brass
Contact Material - Plating	-	Brass - Nickel Tin Plated
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current	-	10 A
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealable, Mounting Flange	Sealable, Mounting Flange
Insulation Color	Black	Natural, Gray, Black
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mating Orientation	-	Horizontal with Board
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Levels	-	1
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	125 °C	105 - 125 ░C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Pitch	-	5 mm
Pitch	-	0.197 in
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Positions Per Level	-	2 - 5
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage	-	300 V
Voltage Rating	250 VAC	250 VAC
Wire Gauge	-	14 AWG
Wire Gauge	-	22 AWG
Wire Termination	-	Push-In Spring, Screwless - Leg Spring

776261 Series

CONN HEADER VERT 14POS 4MM

Part	Current Rating (Amps)	Connector Type	Number of Positions Loaded	Contact Shape	Style	Applications	Contact Type	Insulation Color	Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Features	Voltage Rating	Contact Material	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Fastening Type	Contact Finish - Mating	Voltage	Clamp Material - Plating	Color	Number of Levels	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Current	Pitch [x]	Pitch [x]	Wire Termination	Contact Material - Plating [custom]	Positions Per Level
TE Connectivity AMP Connectors 776261-2	Varies by Wire Gauge	Header	All	Circular	Board to Cable/Wire	Automotive, Industrial	Male Pin	Natural	Solder	Panel Mount, Through Hole	0.157 "	4 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT), Glass Filled	Mounting Flange, Sealable	250 VAC	Brass	14	0.157 in	4 mm	-40 °C	105 ░C	3	Locking Ramp
TE Connectivity AMP Connectors 776261-4	Varies by Wire Gauge	Header	All	Circular	Board to Cable/Wire	Automotive, Industrial	Male Pin	Gray	Solder	Panel Mount, Through Hole	0.157 "	4 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT), Glass Filled	Mounting Flange, Sealable	250 VAC	Brass	14	0.157 in	4 mm	-40 °C	105 ░C	3	Locking Ramp
TE Connectivity AMP Connectors 1-776261-1	Varies by Wire Gauge	Header	All	Circular	Board to Cable/Wire	Automotive, Industrial	Male Pin	Black	Solder	Panel Mount, Through Hole	0.157 "	4 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT), Glass Filled	Mounting Flange, Sealable	250 VAC	Brass	14	0.157 in	4 mm	-40 °C	125 °C	3	Locking Ramp	Gold-Palladium
TE Connectivity AMP Connectors 1776261-5										Through Hole											-55 °C	105 ░C				300 V	Stainless, Steel	Green	1	Horizontal with Board	14 AWG	22 AWG	10 A	5 mm	0.197 in	Push-In Spring, Screwless - Leg Spring	Brass - Nickel Tin Plated	5
TE Connectivity AMP Connectors 1776261-2										Through Hole											-55 °C	105 ░C				300 V	Stainless, Steel	Green	1	Horizontal with Board	14 AWG	22 AWG	10 A	5 mm	0.197 in	Push-In Spring, Screwless - Leg Spring	Brass - Nickel Tin Plated	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.47
		36	$ 9.21
		108	$ 8.21
		504	$ 7.86
		1008	$ 7.01

Description

General part information

776261 Series

Connector Header Panel Mount, Through Hole 14 position 0.157" (4.00mm)
