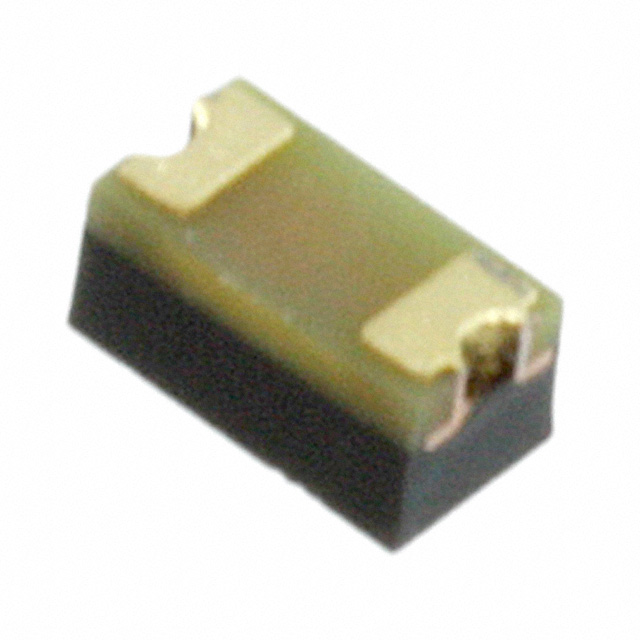

CPDU5V0C-HF

Active

Comchip Technology

TVS DIODE 5VWM 17VC 0603

Search across all available documentation for this part.

Active

Comchip Technology

TVS DIODE 5VWM 17VC 0603

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPDU5V0C-HF	CPDU5V0 Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Capacitance @ Frequency	25 pF	25 - 90 pF
Current - Peak Pulse (10/1000µs)	4 A	4 - 16 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 ¯C	125 ¯C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Power - Peak Pulse	-	75 - 200 W
Power Line Protection	False	False
Supplier Device Package	1608 Metric	1608 Metric
Supplier Device Package	0603	0603, 0603/SOD-523F
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min) [Min]	6.1 V	5.1 - 6.1 V
Voltage - Clamping (Max) @ Ipp [Max]	17 V	12.5 - 17 V
Voltage - Reverse Standoff (Typ)	5 V	5 V

TVS DIODE 5VWM 17VC 0603

Part	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Applications	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Type	Package / Case	Voltage - Reverse Standoff (Typ)	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Supplier Device Package	Unidirectional Channels [custom]	Power - Peak Pulse
Comchip Technology CPDU5V0C-HF	4 A	1	General Purpose	6.1 V	25 pF	Zener	2-SMD, No Lead	5 V	Surface Mount	17 V	125 ¯C	-55 °C	1608 Metric	0603
Comchip Technology CPDU5V0U-HF	16 A		General Purpose	6 V	90 pF	Zener	2-SMD, No Lead	5 V	Surface Mount	12.5 V			1608 Metric	0603	1	200 W
Comchip Technology CPDU5V0-HF	5 A	1	General Purpose	5.1 V		Zener	2-SMD, No Lead	5 V	Surface Mount	15 V				0603/SOD-523F		75 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 0603 (1608 Metric)
