2049/40 100SF

Active

CBL RIBN 40COND 0.025 WHITE 100'

Search across all available documentation for this part.

Active

CBL RIBN 40COND 0.025 WHITE 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

CBL RIBN 100COND 0.025 WHT 300'

Part	Wire Gauge	Length	Length	Ratings	Conductor Strand	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ribbon Thickness	Ribbon Thickness	First Conductor Mark	Number of Conductors	Conductor Material	Insulation Resistance	Pitch [x]	Pitch [x]	Voltage	Ribbon Width	Ribbon Width	Jacket (Insulation) Material	Ribbon Width [custom]	Ribbon Width [custom]	Features	Length [x]	Length [x]	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]
3M 2049/100 300	30 AWG	91.44 m	300 ft	UL Style 20930	Solid	Flat Cable	-20 C	105 ░C	Unshielded	0.64 mm	0.025 in	Blue	100	Copper, Tinned	10 GOhm	0.64 mm	0.025 in	30 V	63.5 mm	2.5 "	Polyolefin (PO)
3M 2049/60 100SF	30 AWG			UL Style 20930	Solid	Flat Cable	-20 C	105 ░C	Unshielded	0.64 mm	0.025 in	Blue	60	Copper, Tinned	10 GOhm	0.64 mm	0.025 in	30 V			Polyolefin (PO)	1.501 in	38.12 mm	Splice Free	100 ft	30.48 m
3M 2049/60 300	30 AWG	91.44 m	300 ft	UL Style 20930	Solid	Flat Cable	-20 C	105 ░C	Unshielded	0.64 mm	0.025 in	Blue	60	Copper, Tinned	10 GOhm	0.64 mm	0.025 in	30 V			Polyolefin (PO)	1.501 in	38.12 mm
3M 2049/40 100SF	30 AWG			UL Style 20930	Solid	Flat Cable	-20 C	105 ░C	Unshielded	0.64 mm	0.025 in	Blue	40	Copper, Tinned	10 GOhm	0.64 mm	0.025 in	30 V	1 in		Polyolefin (PO)			Splice Free	100 ft	30.48 m	25.4 mm
3M 2049/68 300	30 AWG	91.44 m	300 ft	UL Style 20930	Solid	Flat Cable	-20 C	105 ░C	Unshielded	0.64 mm	0.025 in	Blue	68	Copper, Tinned	10 GOhm	0.64 mm	0.025 in	30 V			Polyolefin (PO)							1.7 in	43.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

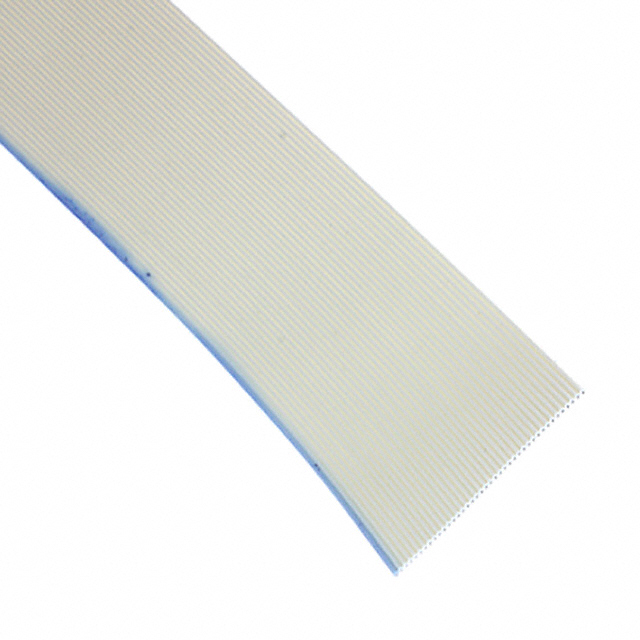

Flat Ribbon Cable White 40 Conductors 0.025" (0.64mm) Flat Cable 100.0' (30.48m)
