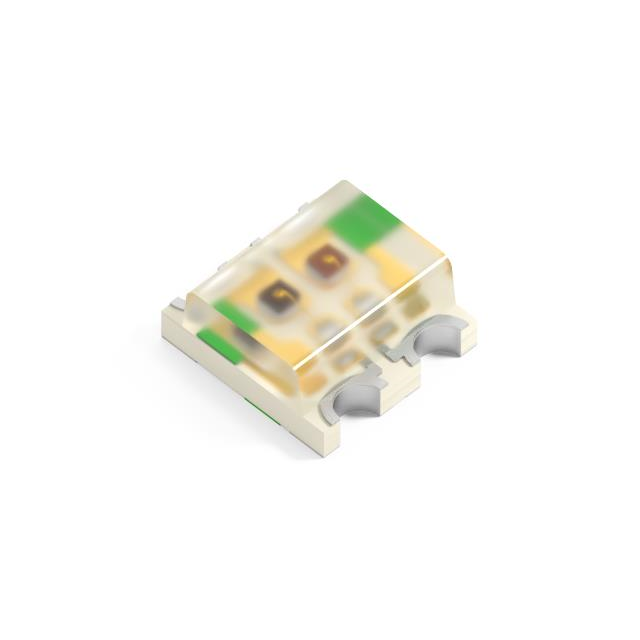

XZMDKVG59W-1
ActiveSunLED
LED GREEN/RED CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMDKVG59W-1
ActiveSunLED
LED GREEN/RED CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMDKVG59W-1 |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.5 mm |
| Lens Size [y] | 1.2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 198 mcd |
| Millicandela Rating [custom] | 49 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0606, 1616 Metric |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 1.95 V |
| Wavelength - Dominant | 630 nm, 570 nm |
| Wavelength - Peak | 574 nm, 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 2000 | $ 0.11 | ||
| 4000 | $ 0.11 | |||
| 6000 | $ 0.10 | |||
| 10000 | $ 0.10 | |||
| 14000 | $ 0.10 | |||
| 20000 | $ 0.09 | |||
| 50000 | $ 0.09 | |||
| 100000 | $ 0.08 | |||
Description
General part information
XZMDKVG59 Series
Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 0606 (1616 Metric)
