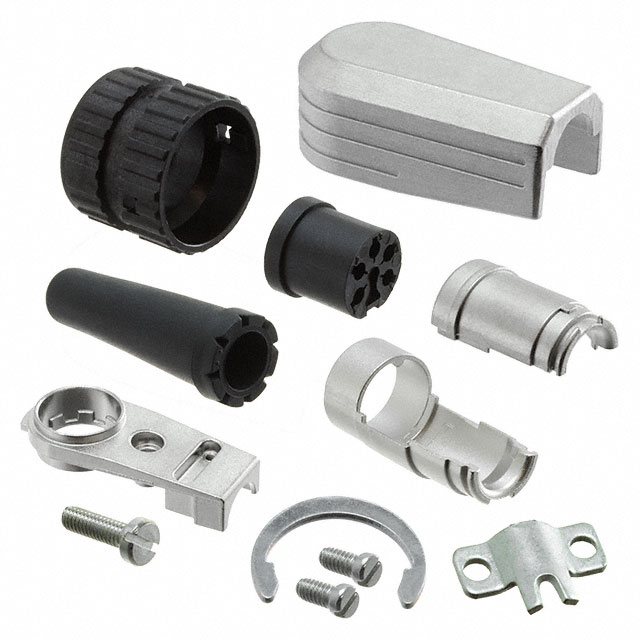

T 3374 055

Active

Amphenol Tuchel Industrial

CONN PLG HSG MALE 5POS INLINE RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC091 A,B,D Series Catalog Datasheet

T 3374 055

Active

Amphenol Tuchel Industrial

CONN PLG HSG MALE 5POS INLINE RA

Deep-Dive with AI

DocumentsC091 A,B,D Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T 3374 055

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Strain Relief, Coupling Nut
Housing Color	Black, Silver
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5
Shielding	Unshielded
Type	For Male Pins

T 3374 Series

Part	Mounting Type	Current Rating (Amps)	Voltage Rating	Fastening Type	Shell Size - Insert	Orientation	Shell Finish	Ingress Protection	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Type	Contact Finish - Mating	Primary Material	Features	Insert Material	Shielding	Material Flammability Rating	Housing Color	Contact Type	Contact Shape	Type	Note	Contact Size
Amphenol Tuchel Industrial T 3374 058	Free Hanging (In-Line) Right Angle	7 A	250 VDC	Bayonet Lock	M16-5	Keyed	Nickel	IP40	Die Cast	100 °C	-40 °C	Silver	Male Pins Plug	Gold	Metal	Strain Relief
Amphenol Tuchel Industrial T 3374 005	Free Hanging (In-Line) Right Angle	7 A	250 VDC	Bayonet Lock	M16-5	Keyed	Nickel	IP40	Die Cast	100 °C	-40 °C	Silver	Male Pins Plug	Silver	Metal	Strain Relief
Amphenol Tuchel Industrial T 3374 551	Free Hanging (In-Line)			Bayonet Lock	M16-5	Keyed	Nickel	IP40	Die Cast	100 °C	-40 °C		Plug Housing			Cable Clamp Coupling Nut Strain Relief	Thermoplastic	Unshielded	UL94 V-0	Black Silver	Crimp	Circular	For Male Pins	Contacts Not Included	1.5 mm
Amphenol Tuchel Industrial T 3374 055	Free Hanging (In-Line) Right Angle			Bayonet Lock	M16-5	Keyed	Nickel	IP40	Die Cast	100 °C	-40 °C		Plug Housing			Cable Clamp Coupling Nut Strain Relief	Thermoplastic	Unshielded	UL94 V-0	Black Silver	Crimp	Circular	For Male Pins	Contacts Not Included	1.5 mm
Amphenol Tuchel Industrial T 3374 552	Free Hanging (In-Line)			Bayonet Lock	M16-5	Keyed	Nickel	IP40	Die Cast	100 °C	-40 °C		Plug Housing			Backshell Cable Clamp Coupling Nut	Thermoplastic	Unshielded	UL94 V-0	Black Silver	Crimp	Circular	For Male Pins	Contacts Not Included	1.5 mm
Amphenol Tuchel Industrial T 3374 518	Free Hanging (In-Line)	7 A	250 VDC	Bayonet Lock	M16-5	Keyed	Nickel	IP40	Die Cast	100 °C	-40 °C	Silver	Male Pins Plug	Gold	Metal	Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.00
		10	$ 17.33
		25	$ 16.43

Description

General part information

T 3374 Series

5 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Cable Clamp, Coupling Nut, Strain Relief

Documents

Technical documentation and resources

C091 A,B,D Series Catalog

Datasheet
