MA7RAE1701-KIT

Active

Amphenol Sine Systems Corp

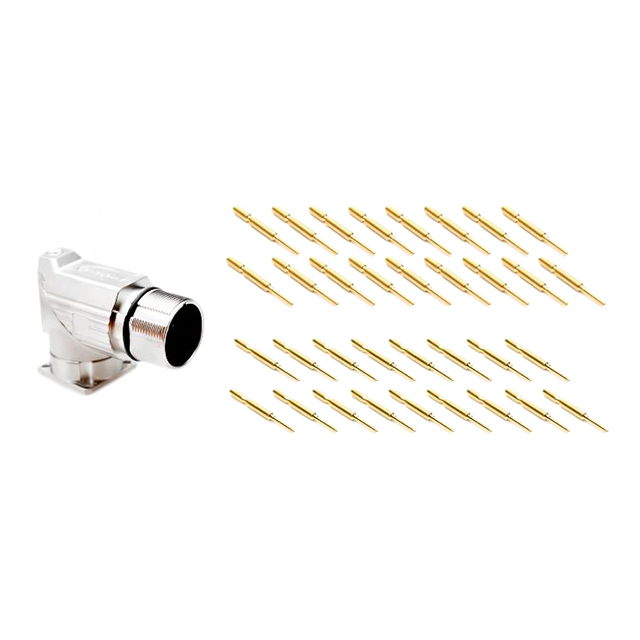

CONN RCPT MALE 17POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MotionGrade DIN M23/M40 +1

MA7RAE1701-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 17POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet MotionGrade DIN M23/M40 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA7RAE1701-KIT

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	9 A
Features	Backshell, Rotatable
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Termination	Crimp
Voltage Rating	125 VAC

MA7RAE Series

Part	Orientation	Insert Material	Shell Finish	Mounting Feature	Ingress Protection	Shielding	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Contact Shape	Note	Shell Size - Insert	Housing Color	Material Flammability Rating	Contact Type	Connector Type	Contact Size	Shell Material	Number of Positions	Fastening Type	Number of Positions	Current Rating (Amps)	Voltage Rating	Primary Material	Termination	Color	Contact Finish - Mating
Amphenol Sine Systems Corp MA7RAE1701	N	Polyamide (PA66) Nylon 6/6	Nickel	Flange	IP67 - Dust Tight Waterproof	Shielded	Backshell Rotatable	Panel Mount Right Angle	-20 C	130 °C	For Female Sockets or Male Pins	Circular	Contacts Not Included	M23-17	Silver	UL94 V-0	Crimp	Receptacle Housing	1 mm	Zinc Die Cast
Amphenol Sine Systems Corp MA7RAE1202	E	Polyamide (PA66) Nylon 6/6	Nickel	Flange	IP67 - Dust Tight Waterproof	Shielded	Backshell Rotatable	Panel Mount Right Angle	-20 C	130 °C	For Female Sockets or Male Pins	Circular	Contacts Not Included	M23-12	Silver	UL94 V-0	Crimp	Receptacle Housing	1 mm	Zinc Die Cast	12	Push-Twist
Amphenol Sine Systems Corp MA7RAE1601	E	Polyamide (PA66) Nylon 6/6	Nickel	Flange	IP67 - Dust Tight Waterproof	Shielded	Backshell Rotatable	Panel Mount Right Angle	-20 C	130 °C	For Female Sockets or Male Pins	Circular	Contacts Not Included	M23-16	Silver	UL94 V-0	Crimp	Receptacle Housing	1 mm	Zinc Die Cast			16
Amphenol Sine Systems Corp MA7RAE1201-KIT	E		Nickel	Flange	IP67 - Dust Tight Waterproof		Backshell Rotatable	Panel Mount Right Angle	-20 C	130 °C				M23-12				Male Pins Receptacle		Zinc Die Cast	12			10 A	160 V	Metal	Crimp	Silver	Gold
Amphenol Sine Systems Corp MA7RAE1602S-KIT	E		Nickel	Flange	IP67 - Dust Tight Waterproof		Backshell Rotatable	Panel Mount Right Angle	-20 C	130 °C				M23-16				Receptacle Female Sockets		Zinc Die Cast			16	9 A	125 VAC	Metal	Crimp	Silver	Gold
Amphenol Sine Systems Corp MA7RAE1201S-KIT	E		Nickel	Flange	IP67 - Dust Tight Waterproof		Backshell Rotatable	Panel Mount Right Angle	-20 C	130 °C				M23-12				Receptacle Female Sockets		Zinc Die Cast	12			10 A	160 V	Metal	Crimp	Silver	Gold
Amphenol Sine Systems Corp MA7RAE1702S-KIT	N		Nickel	Flange	IP67 - Dust Tight Waterproof		Backshell Rotatable	Panel Mount Right Angle	-20 C	130 °C				M23-17				Receptacle Female Sockets		Zinc Die Cast				9 A	125 VAC	Metal	Crimp	Silver	Gold
Amphenol Sine Systems Corp MA7RAE1701-KIT	N		Nickel	Flange	IP67 - Dust Tight Waterproof		Backshell Rotatable	Panel Mount Right Angle	-20 C	130 °C				M23-17				Male Pins Receptacle		Zinc Die Cast				9 A	125 VAC	Metal	Crimp	Silver	Gold
Amphenol Sine Systems Corp MA7RAE1201	E	Polyamide (PA66) Nylon 6/6	Nickel	Flange	IP67 - Dust Tight Waterproof	Shielded	Backshell Rotatable	Panel Mount Right Angle	-20 C	130 °C	For Female Sockets or Male Pins	Circular	Contacts Not Included	M23-12	Silver	UL94 V-0	Crimp	Receptacle Housing	1 mm	Zinc Die Cast	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.61
		10	$ 51.95
		25	$ 49.95
		50	$ 48.28
		100	$ 45.62

Description

General part information

MA7RAE Series

17 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

MotionGrade DIN M23/M40

Datasheet

MotionGrade

Datasheet
