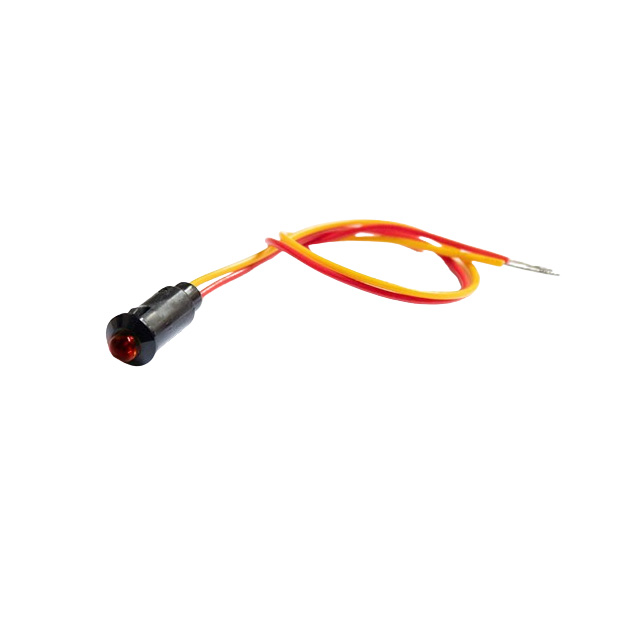

LP1-5-W-R

Active

Switch Components

LED INDICATOR 5MM-RED, SNAP-IN

Search across all available documentation for this part.

Active

Switch Components

LED INDICATOR 5MM-RED, SNAP-IN

Technical Specifications

Parameters and characteristics commom to parts in this series

LED INDICATOR 5MM-AMBER, SNAP-IN

Part	Lens Color	Lens Style	Lens Transparency	Type	Panel Cutout Shape	Voltage	Millicandela Rating	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Viewing Angle	Features
Switch Components LP1-5-W-A	Yellow	Round with Domed Top	Clear	LED	Round	2 V	150 mcd	5 mm Dia	0.32 in	8.2 mm	Yellow	15 °
Switch Components LP1-5-W-R	Red	Round with Domed Top	Diffused	LED	Round	2 V	350 mcd	5 mm Dia	0.32 in	8.2 mm	Red	25 °
Switch Components LP1-5-W-R-BK	Red	Round with Domed Top	Diffused	LED	Round	2 V	350 mcd	5 mm Dia	0.32 in	8.2 mm	Red	25 °	Flashing LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 25° 2V 20mA Wire Leads - 6.7" (170.0mm)
