STIDMW830082112AAA

Obsolete

Samsung Semiconductor, Inc.

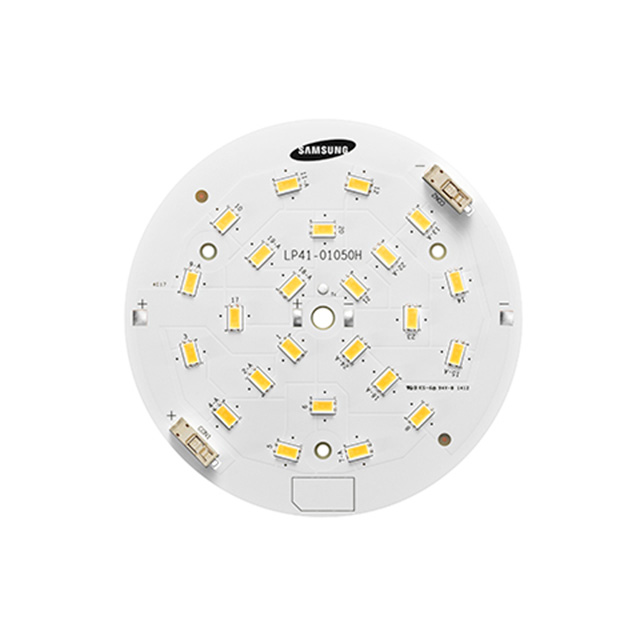

LED ENG RND-90B WHT RND 3000K

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED ENG RND-90B WHT RND 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	STIDMW830082112AAA

Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	80
Height [z]	5.7 mm
Lens Type	Flat
Luminous Flux @ Current/Temperature	905 lm
Size / Dimension [diameter]	90 mm
Type	LED Engine
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	24 V

LED ENG RND-90B WHT RND 3000K

Part	Configuration	Viewing Angle	Luminous Flux @ Current/Temperature	Height [z]	Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Color	Lens Type	Size / Dimension [diameter]
Samsung Semiconductor, Inc. STIDMW830082112AAA	Round	115 °	905 lm	5.7 mm	LED Engine	24 V	80	Warm, White	Flat	90 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Engine Round-90B White, Warm Round

Technical documentation and resources

No documents available
