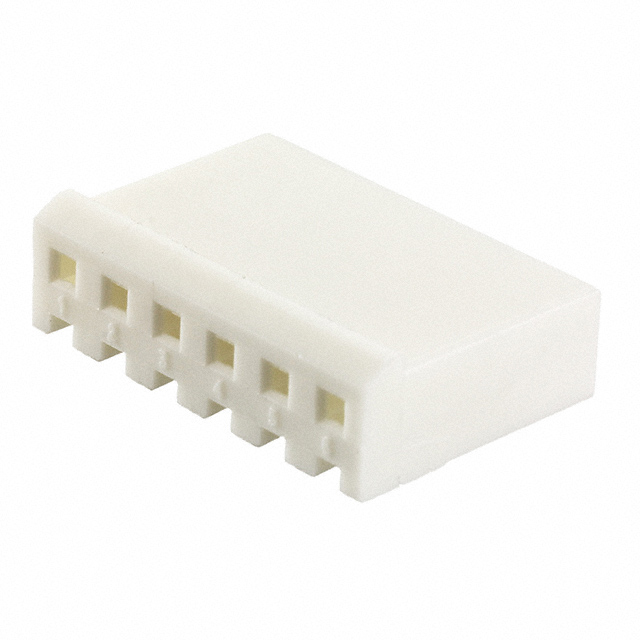

770707-6

Obsolete

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 3.96MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 3.96MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770707-6	770707 Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Locking Ramp	Locking Ramp
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6 - 10
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.156 in	0.156 in
Pitch [x]	3.96 mm	3.96 mm

CONN RCPT HSG 6POS 3.96MM

Part	Pitch [x]	Pitch [x]	Contact Termination	Fastening Type	Number of Positions	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Connector Type	Mounting Type	Color	Contact Type	Note
TE Connectivity AMP Connectors 770707-6	0.156 in	3.96 mm	Crimp	Locking Ramp	6	1	105 ░C	-55 °C	Nylon, Polyamide (PA)	Receptacle	Free Hanging (In-Line)	Natural	Female Socket	Contacts Not Included
TE Connectivity AMP Connectors 1-770707-0	0.156 in	3.96 mm	Crimp	Locking Ramp	10	1	105 ░C	-55 °C	Glass Filled, Nylon, Polyamide (PA)	Receptacle	Free Hanging (In-Line)	Natural	Female Socket	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)

Technical documentation and resources

No documents available
