121496-4
ActiveTE Connectivity AMP Connectors

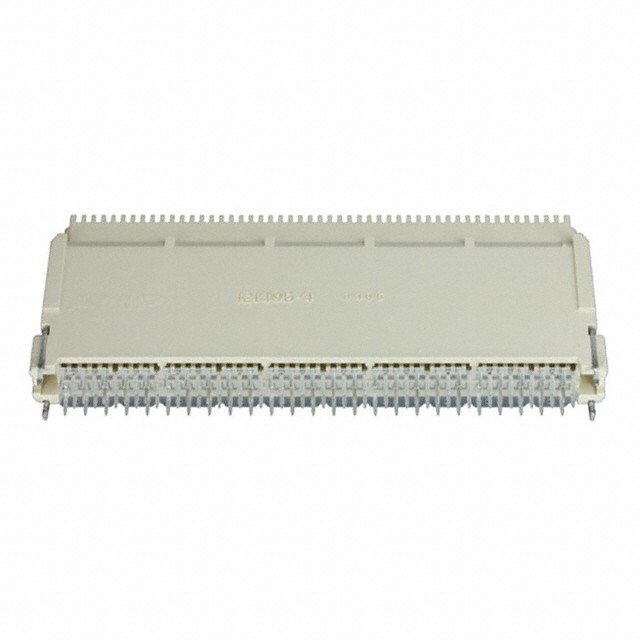

CONN RCPT 100POS 0.05 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
121496-4
ActiveTE Connectivity AMP Connectors
CONN RCPT 100POS 0.05 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 121496-4 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Natural |
| Insulation Height | 27.31 mm |
| Insulation Height | 1.075 in |
| Insulation Material | Thermoplastic |
| Mated Stacking Heights | 38.94 mm, 31.12 mm |
| Mounting Type | Through Hole |
| Number of Positions | 100 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
121496 Series
CONN RCPT 100POS 0.05 GOLD PCB
| Part | Mounting Type | Voltage Rating | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Termination | Contact Finish - Post | Insulation Height | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Features | Contact Type | Mated Stacking Heights | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Number of Rows | Insulation Material | Fastening Type | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 121496-4 | Through Hole | 30 VAC | Natural | 30 Áin | 0.76 Ám | Phosphor Bronze | 0.05 in | 1.27 mm | All | Solder | Tin-Lead | 27.31 mm | 1.075 in | 2.54 mm | 0.1 in | 125 °C | -65 ░C | Receptacle | Board Guide | Female Socket | 31.12 mm, 38.94 mm | 2.54 µm | 100 µin | Square | 2 | Thermoplastic | Push-Pull | Gold | 100 |
Description
General part information
121496 Series
100 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
