Technical Specifications
Parameters and characteristics for this part
| Specification | DMTH4007SPDQ-13 |
|---|---|
| Configuration | 2 N-Channel (Dual) |
| Current - Continuous Drain (Id) @ 25°C | 14.2 A |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 41.9 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 2026 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |

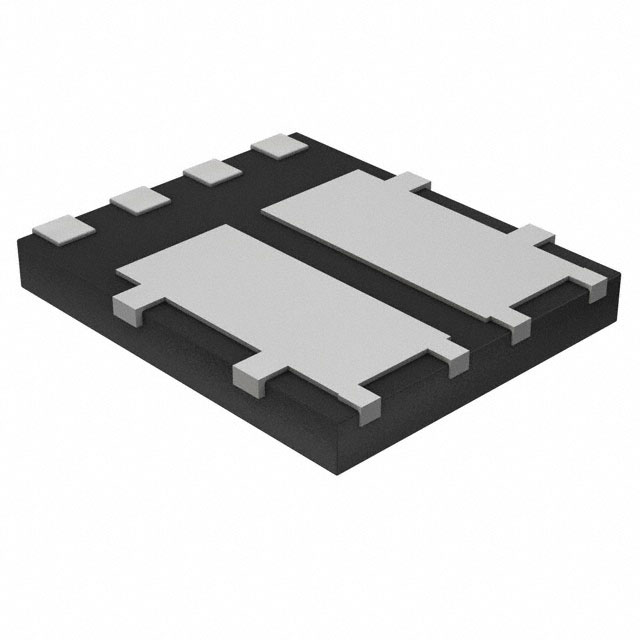

| Package / Case | 8-PowerTDFN |
| Power - Max [Max] | 2.6 W |
| Rds On (Max) @ Id, Vgs | 8.6 mOhm |
| Supplier Device Package | PowerDI5060-8 |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.93 | |
| 10 | $ 1.23 | |||
| 100 | $ 0.82 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.61 | |||
| Digi-Reel® | 1 | $ 1.93 | ||
| 10 | $ 1.23 | |||
| 100 | $ 0.82 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.61 | |||
| Tape & Reel (TR) | 2500 | $ 0.53 | ||
| 5000 | $ 0.50 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.74 | |
| 10 | $ 1.14 | |||
| 25 | $ 1.02 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.62 | |||
Description
General part information
DMTH4007SPDQ Series
This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: backlighting, power-management functions, and DC-DC converters.
