NL114BX

Active

Switchcraft Inc.

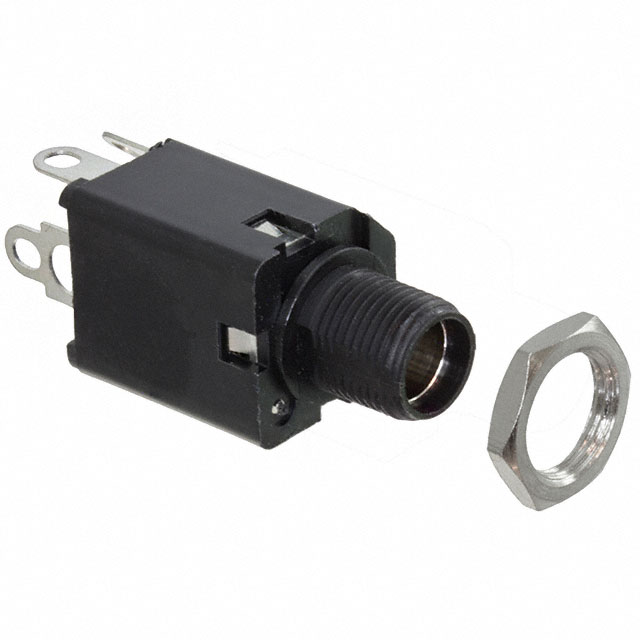

CONN JACK STEREO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	NL114BX

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Black
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating	Tin
Current Rating (Amps)	0.25 A
Features	Thread Lock, Mounting Hardware
Gender	Female
Includes	Connector, Washer, Nut
Internal Switch(s)	Two Switches
Mounting Type	Through Hole, Panel Mount
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	5
Panel Hole Size	0.375 in
Panel Hole Size	9.52 mm
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)
Thread Size	3/8"-32
Voltage - Rated [custom]	48 VDC

CONN JACK STEREO 6.35MM PNL MNT

Part	Voltage - Rated [custom]	Panel Hole Size	Panel Hole Size	Features	Gender	Body Color	Mounting Type	Current Rating (Amps)	Contact Material - Plating	Internal Switch(s)	Actual Diameter [diameter]	Actual Diameter [diameter]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Contact Material	Signal Lines	Includes	Termination	Thread Size	Connector Type
Switchcraft Inc. NL114BX	48 VDC	0.375 in	9.52 mm	Mounting Hardware, Thread Lock	Female	Black	Panel Mount, Through Hole	0.25 A	Tin	Two Switches	0.25 in	6.35 mm	3	5	Unshielded	Brass	Stereo	Connector, Nut, Washer	Solder Eyelet(s)	3/8"-32	Phone Jack
