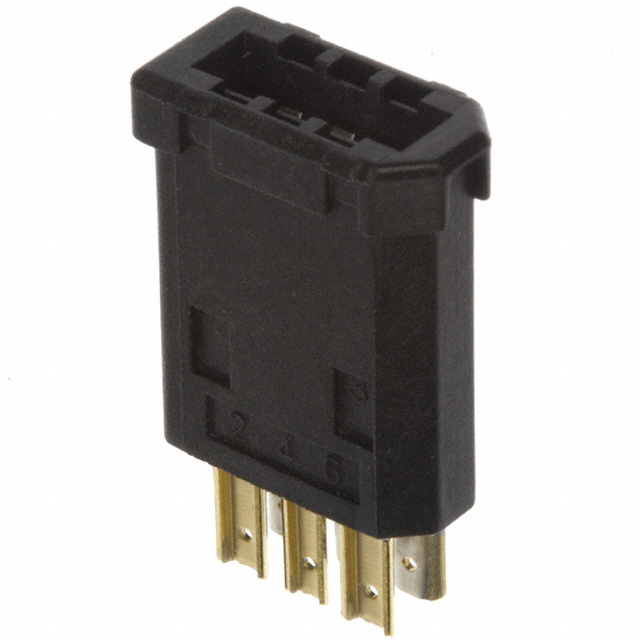

3E206-0100KV
Active3M (TC)
CONN PLUG IEEE 1394 FIREWIRE SLD
Deep-Dive with AI
Search across all available documentation for this part.
3E206-0100KV
Active3M (TC)
CONN PLUG IEEE 1394 FIREWIRE SLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3E206-0100KV |
|---|---|
| Connector Type | Firewire (IEEE 1394) |
| Contact Finish | Gold |
| Gender | Plug |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts [custom] | 6 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 200 VDC |
| Voltage - Rated | 150 VAC |
3E206 Series
| Part | Voltage - Rated | Voltage - Rated | Shielding | Insulation Color | Number of Contacts [custom] | Termination | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Finish | Gender | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 200 VDC | 150 VAC | Unshielded | Black | 6 | Solder | 1 | 85 °C | -55 °C | UL94 V-0 | Gold | Plug | Firewire (IEEE 1394) | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.66 | |
| 10 | $ 7.41 | |||
| 25 | $ 6.69 | |||
| 50 | $ 6.21 | |||
| 100 | $ 5.76 | |||
| 300 | $ 5.15 | |||
| 500 | $ 4.89 | |||
| 1000 | $ 4.57 | |||
Description
General part information
3E206 Series
Firewire (IEEE 1394) Plug Connector 6 Position Free Hanging (In-Line)
