Q-0F04N000H024i

Active

Amphenol Custom Cable

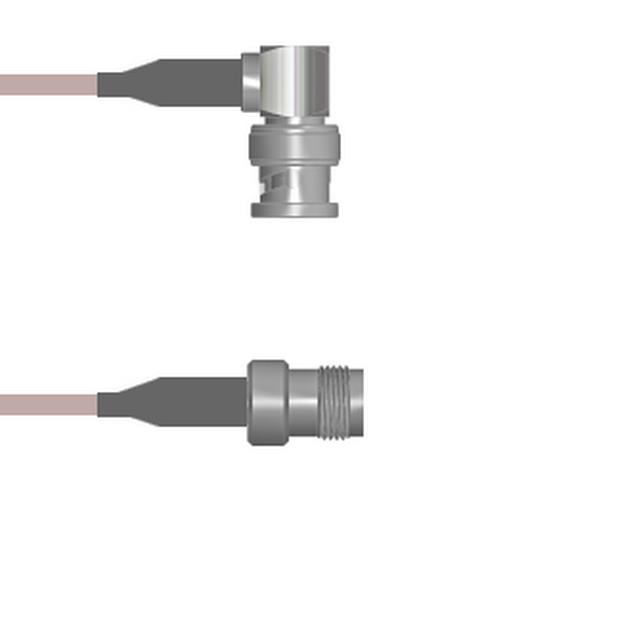

CBL ASSY BNC-TNC PLUG-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0F04N000H024i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0F04N000H024i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0F04N0 Series

Part	Length [x]	Length [x]	2nd Contact Gender	Style	1st Connector	Overall Impedance	1st Connector Mounting Type	Cable Type	Color	2nd Connector	1st Contact Gender	Features	Frequency - Max [Max]	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-0F04N000H018i	457.2 mm	457.2 mm	Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)
Amphenol Custom Cable Q-0F04N000H003M			Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)	3 m	118.1 in	9.8 '
Amphenol Custom Cable Q-0F04N000H072i			Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)	1.8 m	72 in	6 ft
Amphenol Custom Cable Q-0F04N000H009i			Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)	228.6 mm	9 "
Amphenol Custom Cable Q-0F04N000H024i			Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)	609.6 mm	24 "
Amphenol Custom Cable Q-0F04N000H060i			Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)	1.5 m	5 '	5 ft
Amphenol Custom Cable Q-0F04N000H084i			Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)	2.1 m	84 in	7 ft
Amphenol Custom Cable Q-0F04N000H1.5M			Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)	1.5 m	59.1 in	4.9 ft
Amphenol Custom Cable Q-0F04N000H001M			Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)	1 m	39.4 in	3.3 ft
Amphenol Custom Cable Q-0F04N000H006i			Female	BNC to TNC	BNC Plug Right Angle	50 Ohms	Free Hanging (In-Line)	RG-142	Copper	TNC Jack	Male	Shielded	4 GHz	Free Hanging (In-Line)	152.4 mm	6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 95.28
		25	$ 93.43
		50	$ 91.58
		100	$ 89.74
		250	$ 87.89

Description

General part information

Q-0F04N0 Series

Cable Assembly Coaxial BNC to TNC RG-142 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
