086-6SBSMR+

Active

MINI-CIRCUITS

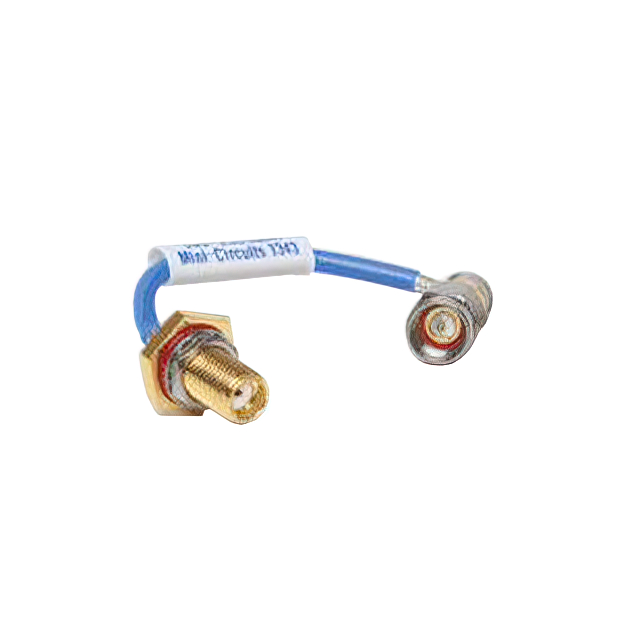

CBL ASSY SMA JACK TO PLUG 6"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA JACK TO PLUG 6"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	086-6SBSMR+	086-6 Series

1st Connector	SMA Jack	SMA Plug, 2.92mm Plug, Right Angle, SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Female	Male, Female
2nd Connector	SMA Plug, Right Angle	SMA Plug, SMA Plug, Right Angle
2nd Connector	-	2.92 mm
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	Hand Formable	Hand Formable
Cable Type	0.086	0.086
Color	Blue	Blue
Frequency - Max [Max]	18 GHz	18 - 40 GHz
Length	152.4 mm	152.4 mm
Length	6 in	6 in
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to SMA	SMA to SMA
Style	-	2.92 mm
Style	-	2.92 mm

HAND-FLEX INTERCONNECT, 0.086" CENTER DIAMETER, 18.0GHZ

Part	Length	Length	Color	2nd Connector	Style	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Cable Type	1st Contact Gender	2nd Connector Mounting Type	2nd Contact Gender	1st Connector	1st Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Style [Min]	Style [Max]	2nd Connector	1st Connector Mounting Feature
MINI-CIRCUITS 086-6SM+	152.4 mm	6 in	Blue	SMA Plug	SMA to SMA	105 ░C	-55 °C	Hand Formable	0.086	Male	Free Hanging (In-Line)	Male	SMA Plug	Free Hanging (In-Line)	50 Ohms	18 GHz
MINI-CIRCUITS 086-6KM+	152.4 mm	6 in	Blue			85 °C	-55 °C	Hand Formable	0.086	Male	Free Hanging (In-Line)	Male	2.92mm Plug	Free Hanging (In-Line)	50 Ohms	40 GHz	2.92 mm	2.92 mm	2.92 mm
MINI-CIRCUITS 086-6SMRSM+	152.4 mm	6 in	Blue	SMA Plug	SMA to SMA	105 ░C	-55 °C	Hand Formable	0.086	Male	Free Hanging (In-Line)	Male	Right Angle, SMA Plug	Free Hanging (In-Line)	50 Ohms	18 GHz
MINI-CIRCUITS 086-6SMR+	152.4 mm	6 in	Blue	SMA Plug, Right Angle	SMA to SMA	105 ░C	-55 °C	Hand Formable	0.086	Male	Free Hanging (In-Line)	Male	Right Angle, SMA Plug	Free Hanging (In-Line)	50 Ohms	18 GHz
MINI-CIRCUITS 086-6SBSMR+	152.4 mm	6 in	Blue	SMA Plug, Right Angle	SMA to SMA	105 ░C	-55 °C	Hand Formable	0.086	Female	Free Hanging (In-Line)	Male	SMA Jack	Panel Mount	50 Ohms	18 GHz				Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 6.000" (152.40mm)
