086-6SMR+

Active

MINI-CIRCUITS

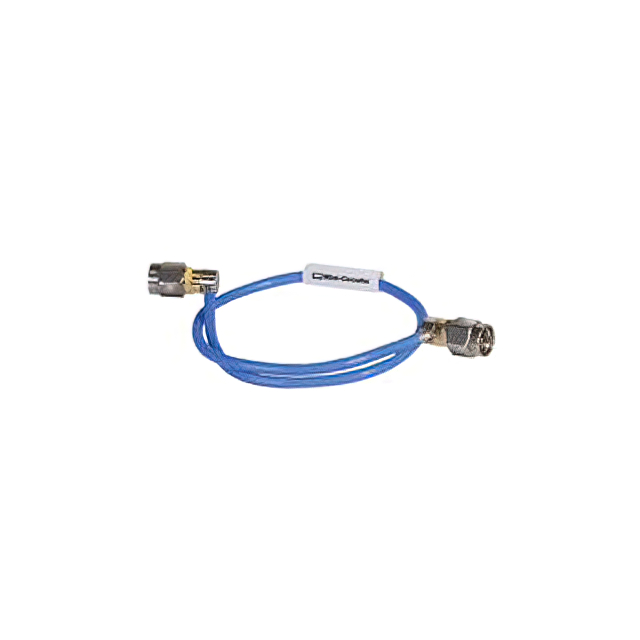

CBL ASSY SMA PLUG TO PLUG 6"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY SMA PLUG TO PLUG 6"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	086-6SMR+	086-6 Series

1st Connector	SMA Plug, Right Angle	SMA Plug, 2.92mm Plug, Right Angle, SMA Jack
1st Connector Mounting Feature	-	Bulkhead - Front Side Nut
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Male	Male, Female
2nd Connector	SMA Plug, Right Angle	SMA Plug, SMA Plug, Right Angle
2nd Connector	-	2.92 mm
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	Hand Formable	Hand Formable
Cable Type	0.086	0.086
Color	Blue	Blue
Frequency - Max [Max]	18 GHz	18 - 40 GHz
Length	152.4 mm	152.4 mm
Length	6 in	6 in
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	SMA to SMA	SMA to SMA
Style	-	2.92 mm
Style	-	2.92 mm

HAND-FLEX INTERCONNECT, 0.086" CENTER DIAMETER, 18.0GHZ

Part	Length	Length	Color	2nd Connector	Style	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Cable Type	1st Contact Gender	2nd Connector Mounting Type	2nd Contact Gender	1st Connector	1st Connector Mounting Type	Overall Impedance	Frequency - Max [Max]	Style [Min]	Style [Max]	2nd Connector	1st Connector Mounting Feature
MINI-CIRCUITS 086-6SM+	152.4 mm	6 in	Blue	SMA Plug	SMA to SMA	105 ░C	-55 °C	Hand Formable	0.086	Male	Free Hanging (In-Line)	Male	SMA Plug	Free Hanging (In-Line)	50 Ohms	18 GHz
MINI-CIRCUITS 086-6KM+	152.4 mm	6 in	Blue			85 °C	-55 °C	Hand Formable	0.086	Male	Free Hanging (In-Line)	Male	2.92mm Plug	Free Hanging (In-Line)	50 Ohms	40 GHz	2.92 mm	2.92 mm	2.92 mm
MINI-CIRCUITS 086-6SMRSM+	152.4 mm	6 in	Blue	SMA Plug	SMA to SMA	105 ░C	-55 °C	Hand Formable	0.086	Male	Free Hanging (In-Line)	Male	Right Angle, SMA Plug	Free Hanging (In-Line)	50 Ohms	18 GHz
MINI-CIRCUITS 086-6SMR+	152.4 mm	6 in	Blue	SMA Plug, Right Angle	SMA to SMA	105 ░C	-55 °C	Hand Formable	0.086	Male	Free Hanging (In-Line)	Male	Right Angle, SMA Plug	Free Hanging (In-Line)	50 Ohms	18 GHz
MINI-CIRCUITS 086-6SBSMR+	152.4 mm	6 in	Blue	SMA Plug, Right Angle	SMA to SMA	105 ░C	-55 °C	Hand Formable	0.086	Female	Free Hanging (In-Line)	Male	SMA Jack	Panel Mount	50 Ohms	18 GHz				Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 23.00

General part information

Cable Assembly Coaxial SMA to SMA Hand Formable .086 6.000" (152.40mm)
