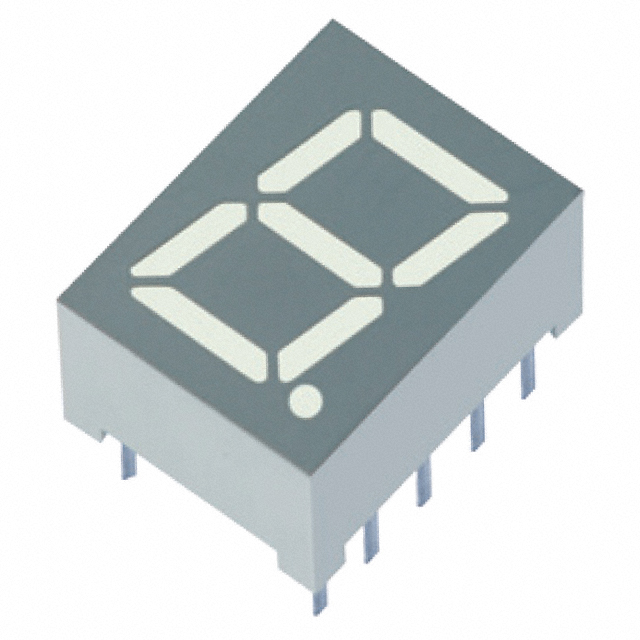

XDUG08A

Active

SunLED

DISPLAY 7SEG 0.39" SGL GRN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUG08A

Active

SunLED

DISPLAY 7SEG 0.39" SGL GRN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDUG08A

Color	Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.39 in
Digit/Alpha Size	10 mm
Display Type	7-Segment
Millicandela Rating	2 mcd
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	0.394 in
Size / Dimension [y]	10 mm
Size / Dimension [z]	0.276 in
Size / Dimension [z]	7 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	565 nm

XDUG08 Series

Part	Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Wavelength - Peak	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Number of Characters [custom]	Power Dissipation (Max) [Max]	Display Type	Color
SunLED XDUG08A	10 mA	13 mm	0.512 in	0.276 in	0.394 in	7 mm	10 mm	565 nm	2 mcd	2 V	0.39 in	10 mm	Common Anode	1	62.5 mW	7-Segment	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XDUG08 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2V 10mA 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) 10-DIP (0.300", 7.62mm)

Documents

Technical documentation and resources
