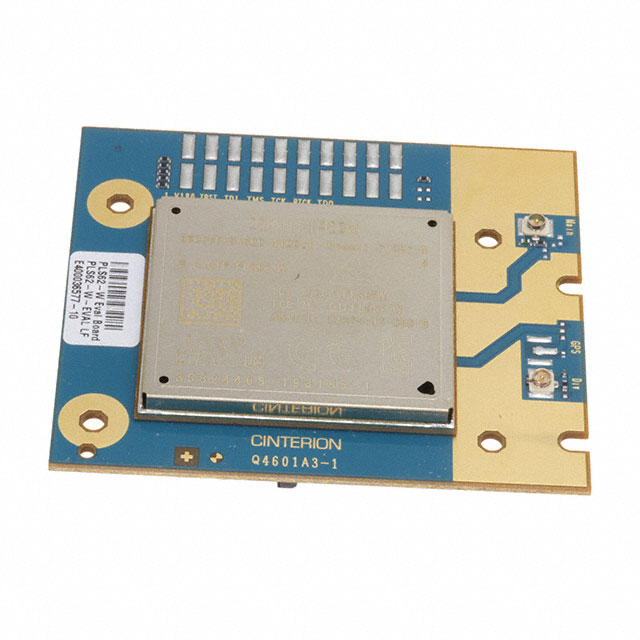

EVAL PLS62-W REL.1

Active

Telit Cinterion

EVALUATION MODULE CELLULAR

Search across all available documentation for this part.

Active

Telit Cinterion

EVALUATION MODULE CELLULAR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EVAL PLS62-W REL.1	PLS62 Series

Antenna Type	-	Antenna Not Included
Contents	Board(s)	Board(s)
Data Rate	-	7.2 Mbps
Frequency	1800 MHz, 2600 MHz, 800 MHz, 700 MHz, 900 MHz, 850 MHz, 2100 MHz, 1900 MHz	1.7 - 2600 MHz
Frequency	AWS1	AWS1
Memory Size	-	31 MB
Memory Size	-	18 MB
Mounting Type	-	Surface Mount
Operating Temperature	-	90 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Protocol	-	UMTS, HSPA+, LTE, WCDMA, CDMA, GSM, HSPA
RF Family/Standard	-	Cellular
Serial Interfaces	-	USB, PWM, I2C, SPI
Utilized IC / Part	EVAL-DSB Adapter, DSB75, DSB-Mini	EVAL-DSB Adapter, DSB75, DSB-Mini
Voltage - Supply	-	4.5 V
Voltage - Supply	-	3 V

EVALUATION MODULE CELLULAR

Part	Frequency	Frequency	Utilized IC / Part	Contents	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Package / Case	Protocol	Antenna Type	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	RF Family/Standard	Memory Size [custom]	Memory Size [custom]
Telit Cinterion EVAL PLS62-W REL.1	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	AWS1	DSB-Mini, DSB75, EVAL-DSB Adapter	Board(s)
Telit Cinterion PLS62-W	1.7 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz				90 °C	-40 °C	I2C, PWM, SPI, USB	Module	CDMA, GSM, HSPA, HSPA+, LTE, UMTS, WCDMA	Antenna Not Included	7.2 Mbps	4.5 V	3 V	Surface Mount	Cellular	31 MB	18 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

DSB75, DSB-Mini, EVAL-DSB Adapter Cinterion® Cellular 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz, AWS1 Evaluation Board

Technical documentation and resources

No documents available
