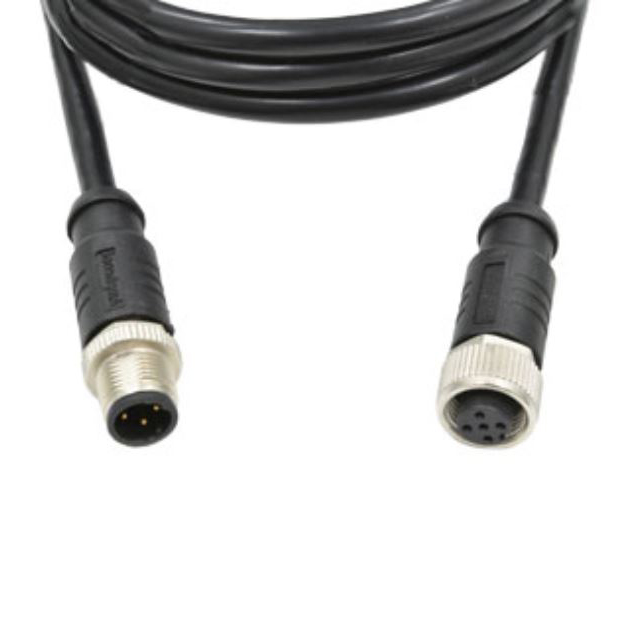

M12A05ML-12AFL-SB002

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD, OV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12A05ML-12AFL-SB002

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 4A, 05 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD, OV

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A05ML-12AFL-SB002

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Unshielded
Usage	Industrial Environments

M12A05ML Series

Part	Ingress Protection	2nd Connector Number of Positions	Cable Type	Cable Material	Length [x]	Length [x]	Assembly Configuration	2nd Connector Number of Positions Loaded	Usage	1st Connector Number of Positions Loaded	Color	1st Connector Gender	2nd Connector Mounting Type	1st Connector Number of Positions	1st Connector Type	1st Connector Orientation	1st Connector Mounting Type	2nd Connector Shell Size - Insert	2nd Connector Type	Shielding	1st Connector Shell Size - Insert	2nd Connector Gender
Amphenol LTW M12A05ML-12AMR-SBA05	IP68 IP69K	5	Round	Polyurethane (PUR)	1.64 ft	500 mm	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle Right Angle	A	Free Hanging (In-Line)	M12	Receptacle	Unshielded	M12
Amphenol LTW M12A05ML-12AML-SDA05	IP68 IP69K	5	Round	Polyvinyl Chloride (PVC)	1.64 ft	500 mm	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle	A	Free Hanging (In-Line)	M12	Receptacle	Unshielded	M12
Amphenol LTW M12A05ML-12AFL-SB001	IP68 IP69K	5	Round	Polyurethane (PUR)	3.28 ft	1 m	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle	A	Free Hanging (In-Line)	M12	Plug	Unshielded	M12	Female Sockets
Amphenol LTW M12A05ML-12AFR-SD001	IP68 IP69K	5	Round	Polyvinyl Chloride (PVC)	3.28 ft	1 m	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle	A	Free Hanging (In-Line)	M12	Plug Right Angle	Unshielded	M12	Female Sockets
Amphenol LTW M12A05ML-12AML-SD002	IP68 IP69K	5	Round	Polyvinyl Chloride (PVC)	6.56 ft	2 m	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle	A	Free Hanging (In-Line)	M12	Receptacle	Unshielded	M12
Amphenol LTW M12A05ML-12AFL-SB002	IP68 IP69K	5	Round	Polyurethane (PUR)	6.56 ft	2 m	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle	A	Free Hanging (In-Line)	M12	Plug	Unshielded	M12	Female Sockets
Amphenol LTW M12A05ML-12AMR-SD001	IP68 IP69K	5	Round	Polyvinyl Chloride (PVC)	3.28 ft	1 m	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle Right Angle	A	Free Hanging (In-Line)	M12	Receptacle	Unshielded	M12
Amphenol LTW M12A05ML-12AFL-SDA05	IP68 IP69K	5	Round	Polyvinyl Chloride (PVC)	1.64 ft	500 mm	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle	A	Free Hanging (In-Line)	M12	Plug	Unshielded	M12	Female Sockets
Amphenol LTW M12A05ML-12AFL-SBA05	IP68 IP69K	5	Round	Polyurethane (PUR)	1.64 ft	500 mm	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle	A	Free Hanging (In-Line)	M12	Plug	Unshielded	M12	Female Sockets
Amphenol LTW M12A05ML-12AFL-SD002	IP68 IP69K	5	Round	Polyvinyl Chloride (PVC)	6.56 ft	2 m	Standard	All	Industrial Environments	All	Black	Male Pins	Free Hanging (In-Line)	5	Receptacle	A	Free Hanging (In-Line)	M12	Plug	Unshielded	M12	Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 22.60
		10	$ 17.41
		25	$ 15.76
		50	$ 14.65
		100	$ 13.64
		250	$ 12.45
		500	$ 11.64
Newark	Each	10	$ 15.49
		25	$ 14.23
		50	$ 12.70
		100	$ 11.69
		250	$ 11.35

Description

General part information

M12A05ML Series

Circular Cable Assembly Unshielded 6.56' (2.00m)
