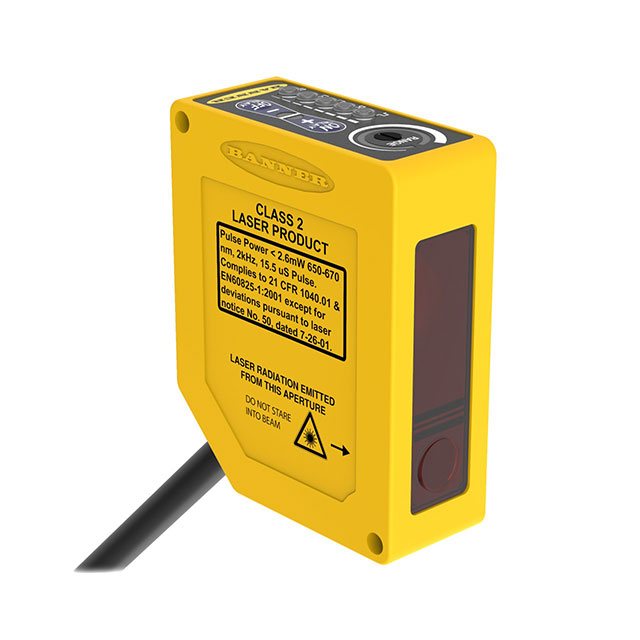

Q60VR3LAF2000Q1

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, Q60LAF SERIES, ADJUSTABLE-FIELD, 2M, SPST-NO, 12-250VDC, CONNECTOR, 24-250VAC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, Q60LAF SERIES, ADJUSTABLE-FIELD, 2M, SPST-NO, 12-250VDC, CONNECTOR, 24-250VAC

Technical Specifications

Parameters and characteristics for this part

Specification	Q60VR3LAF2000Q1

Adjustment Type	Adjustable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	LED
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	-10 °C
Output Configuration	Light-On/Dark-On
Response Time	15 ms
Sensing Distance	78.74 "
Sensing Distance	2 m
Sensing Method	Reflective, Background Suppression
Voltage - Supply [Max]	250 V
Voltage - Supply [Min]	12 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Adjustment Type	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Output Configuration	Response Time	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Light Source	Ingress Protection	Connection Method	Sensing Distance	Sensing Distance	Cable Length	Cable Length
BANNER ENGINEERING Q60VR3AF2000Q1	12 V 24 VAC	250 V 250 VAC	Adjustable	55 °C	-20 C	Background Suppression	SPST	15 ms	2000 mm	7.87 in	20 cm	78.74 "	Infrared LED	IP67 NEMA 6P	Connector
BANNER ENGINEERING Q60VR3LAF2000Q1	12 V	250 V	Adjustable	45 °C	-10 °C	Background Suppression Reflective	Light-On/Dark-On	15 ms					LED	NEMA 6P IEC IP67		78.74 "	2 m
BANNER ENGINEERING Q60VR3LAF2000QPMA3	12 V 24 VAC	250 V 250 VAC	Adjustable	45 °C	-10 °C	Background Suppression	SPST	15 ms					LED	NEMA 6P IEC IP67	Connector	78.74 "	2 m
BANNER ENGINEERING Q60VR3AFV1000Q1	12 V 24 VAC	250 V 250 VAC	Adjustable	55 °C	-20 C	Background Suppression	SPST	15 ms					Red LED	IP67 NEMA 6P	Connector	39.37 in	1 m
BANNER ENGINEERING Q60VR3LAF1400QPMA	12 V 24 VAC	250 V 250 VAC	Adjustable	45 °C	-10 °C	Background Suppression	SPST	15 ms					LED	NEMA 6P IEC IP67	Connector	55.118 in	1.4 m
BANNER ENGINEERING Q60VR3AF2000	12 V 24 VAC	250 V 250 VAC	Adjustable	55 °C	-20 C	Background Suppression	SPDT	15 ms	2000 mm	7.87 in	20 cm	78.74 "	Infrared LED	IP67 NEMA 6P	Cable			78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 483.00
Newark	Each	1	$ 483.59

General part information

Reflective, Background Suppression Optical Sensor 78.740" (2m) Light-On/Dark-On
