CONN BNC JACK STR 75OHM EDGE MNT

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC JACK STR 75OHM EDGE MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

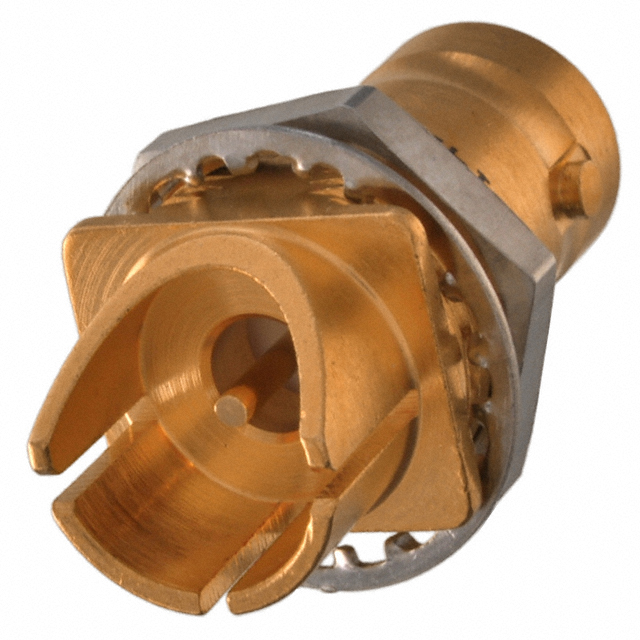

BNC Connector Jack, Female Socket 75 Ohms Board Edge, End Launch; Panel Mount Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	UCBBJE20-2	UCBBJE20 Series

Body Finish	Gold	Gold, Nickel
Body Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Gold	Gold, Silver
Impedance	75 Ohms	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Panel Mount, End Launch, Board Edge	Panel Mount, End Launch, Board Edge
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN BNC JACK STR 75OHM EDGE MNT

Part	Housing Color	Mounting Feature	Impedance	Center Contact Plating	Body Finish	Fastening Type	Connector Style	Connector Type	Body Material	Voltage Rating	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Contact Termination	Mounting Type	Dielectric Material	Frequency - Max [Max]	Number of Ports
Cinch Connectivity Solutions Trompeter UCBBJE20-2	Gold	Bulkhead - Front Side Nut	75 Ohms	Gold	Gold	Bayonet Lock	BNC	Female Socket, Jack	Brass	500 V	Solder	-65 ░C	165 °C	1 Connector, 1 Lockwasher, 1 Nut	Solder	Board Edge, End Launch, Panel Mount	Polytetrafluoroethylene (PTFE)	4 GHz	1
Cinch Connectivity Solutions Trompeter UCBBJE20-1	Gold	Bulkhead - Front Side Nut	75 Ohms	Gold	Gold	Bayonet Lock	BNC	Female Socket, Jack	Brass	500 V	Solder	-65 ░C	165 °C	1 Connector, 1 Lockwasher, 1 Nut	Solder	Board Edge, End Launch, Panel Mount	Polytetrafluoroethylene (PTFE)	4 GHz	1
Cinch Connectivity Solutions Trompeter UCBBJE20-3	Gold	Bulkhead - Front Side Nut	75 Ohms	Gold	Gold	Bayonet Lock	BNC	Female Socket, Jack	Brass	500 V	Solder	-65 ░C	165 °C	1 Connector, 1 Lockwasher, 1 Nut	Solder	Board Edge, End Launch, Panel Mount	Polytetrafluoroethylene (PTFE)	4 GHz	1
Cinch Connectivity Solutions Trompeter UCBBJE20-4	Silver		75 Ohms	Gold	Nickel	Bayonet Lock	BNC	Female Socket, Jack	Brass	500 V	Solder	-65 ░C	165 °C		Solder	Board Edge, End Launch		4 GHz	1
